Pole mounted plastic fiber optic terminal box 24 fo for FTTX project

Name: Pole mounted plastic fiber optic terminal box 24 fo for FTTX project
Brand: CSYHT
Price: 1 USD

Quality Pole mounted plastic fiber optic terminal box 24 fo for FTTX project wholesale

Brand Name : CSYHT

Model Number : OTB-E0224

Certification : RoHS

Place of Origin : China

MOQ : 10 pcs

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 300pcs per day

Delivery Time : about 3 days

Packaging Details : carton

Material : ABS plastic

Dimension : 250.4x322.5x91.9mm

Cable port : 2 entry and 16 drop cable output port

Adapter port : 12 LC duplex

Application : Outdoor wall mounted and pole mounted

Splitter : PLC 1x16 splitter

Price : Negotiable

Contact Now

Pole mounted plastic fiber optic terminal box 24 fo for FTTH project

Description:

OTB-E0224 is ABS plastic fiber optic distribution box for 24 fiber connection.

It has same box body as OTB-0216, but inside load 2pcs splice trays for 24FO splicing and with 1 adapter panel for loading 12pcs LC duplex adapters.

It can be outdoor pole mounted or wall mounted using.

Features

Can load PLC 1x4.1x8,1X16,2x4.2x8 & 2x16 splitter.

Light weight, ABS plastic

Rainfall resistant, IP66 outdoor using.

Capacity 24 fibers

Wall mounting and pole mounting application.

2 inlet ports,16 outlet ports with 16pcs SC,LC,ST,FC adapters.

Application

FTTH access network

Telecommunication Networks

CATV Networks

Data communications Networks

Local Area Networks

Specification:

Model	Capacity	Size	Adapter plate
OTB-E0224	24 cores	220x80x300mm	12pcs simplex adapter ports

Pictures:

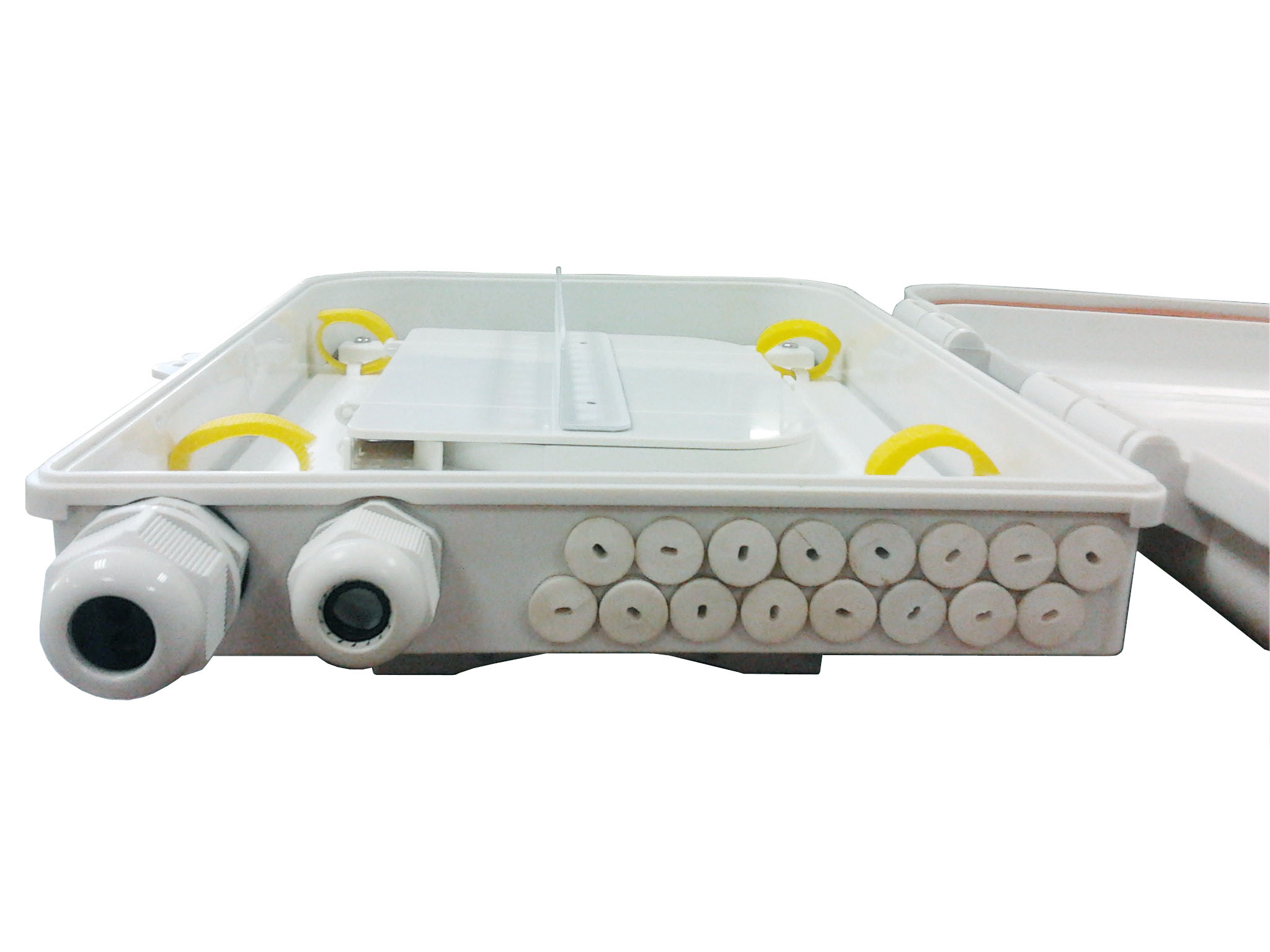

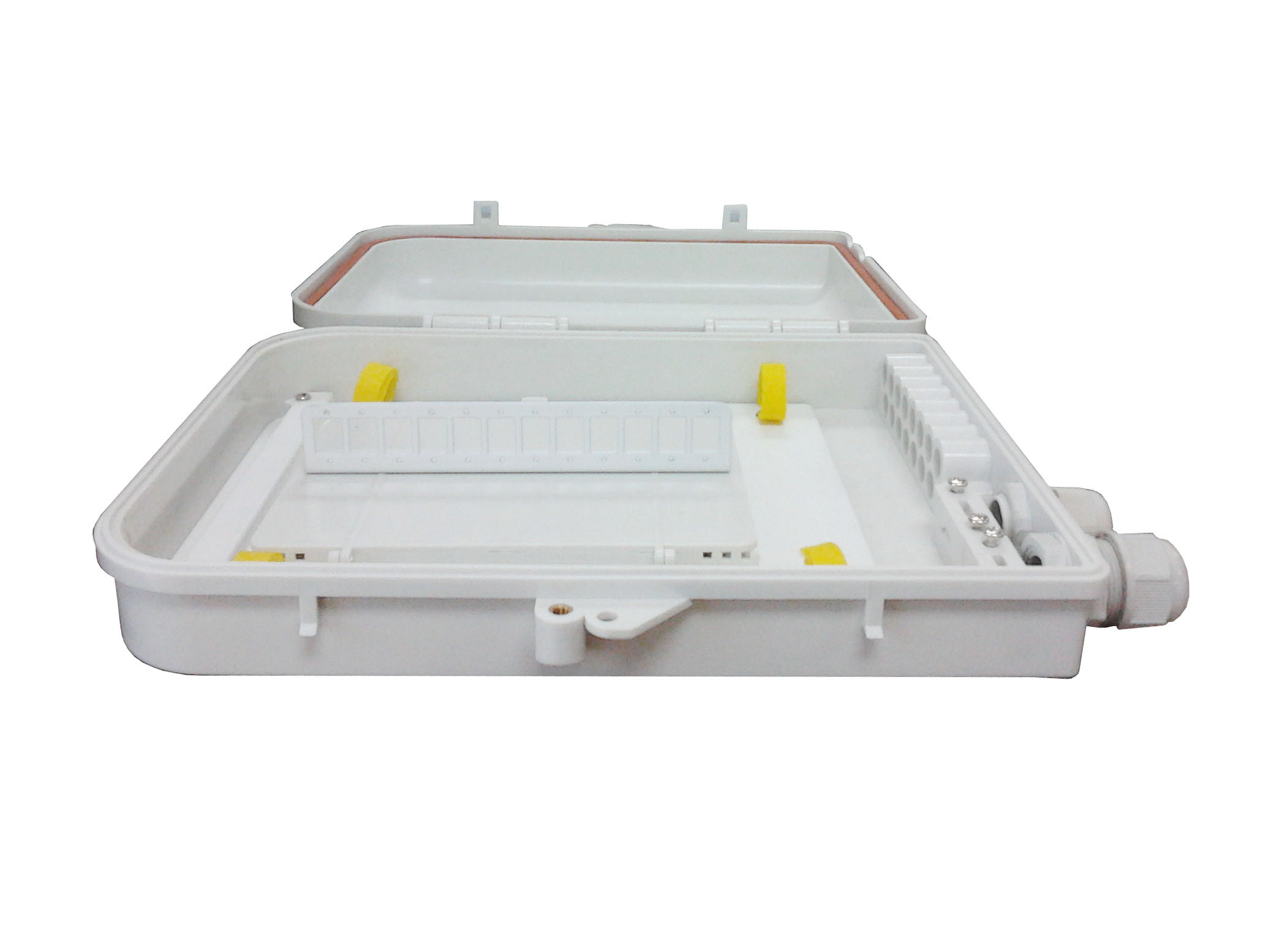

Pole mounted plastic fiber optic terminal box 24 fo for FTTX project
