96 Port Rack Mount Fiber Panel Slide Out Drawer For Easy Cable Management

Name: 96 Port Rack Mount Fiber Panel Slide Out Drawer For Easy Cable Management
Brand: CSYHT
Price: 1 USD

Quality 96 Port Rack Mount Fiber Panel Slide Out Drawer For Easy Cable Management wholesale

Brand Name : CSYHT

Model Number : ODF-RS96A

Place of Origin : China

MOQ : 10 pcs

Payment Terms : T/T, D/P, D/A, L/C

Supply Ability : 300pcs per day

Delivery Time : about 6 days

Packaging Details : carton

Max. capacity : 96 fibers

Material : cold roll steel

Adapter : SC, LC, FC, ST

Dimension : 438x326.5x165.7mm

Type : drawer

Application : 19inch rack mounted

Price : Negotiable

Contact Now

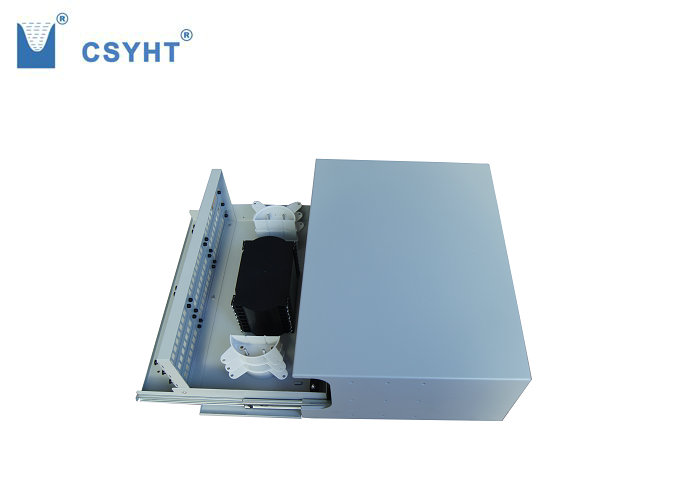

96 port drawer fiber optic patch panel 19inch rack mounted with front cover

Description:

ODF-RS96A fiber optic distribution frame is with metal front cover. It is made of cold roll steel, with plastic splice tray inside. It is loaded in 19'' fiber optic cabinet.

It contains 8pcs fiber optic splice trays, max. 96 fibers splicing and distribution. Different adapter panel can be provided, such as FC, SC, LC, ST, MU ...

Features:

Standard size, light weight and reasonable structure

Slide out drawer for easy cable management

FC, SC, ST, LC adapter patch panel for option

Front access panel design for easy operation

Suitable for 19’’ or 23’’ standard optic distribution cabinets

With metal front cover

8pcs splice trays (each 12fibers)

12pcs adapter plates (each 8pcs adapter ports)

Max. capacity 96 fibers

4 fiber cable entry ports at rear side

White or black color

Specification:

Model	Fiber Quantity	Dimension(mm)	Net Weight(kg)
ODF-RS96A	96	482328166	9.2

Application:

Telecommunications

Fiber to the home (FTTH)

LAN / WAN

CATV
