144 core slidable type fiber optic patch panel with rack mounted for cabinet

Name: 144 core slidable type fiber optic patch panel with rack mounted for cabinet
Brand: CSYHT
Price: 1 USD

Quality 144 core slidable type fiber optic patch panel with rack mounted for cabinet wholesale

Brand Name : CSYHT

Model Number : ODF-RS144A

Place of Origin : China

MOQ : 10 pcs

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 300pcs per day

Delivery Time : about 6 days

Packaging Details : carton

Material : steel

Adapter : FC simplex, SC simplex, LC duplex

Capacity : Max. 144 fibers

Size : 438x326.5x231.7mm

Type : 19inch slidable type

Application : Rack mounted

Price : Negotiable

Contact Now

144 core slidable type fiber optic patch panel with rack mounted for cabinet

Description:

ODF-RS144A is a 19inch modular design box that used for optical fiber splicing, distribution, termination and connection. It has metal sliding fittings with self-locking functions prevent the drawer from falling when moved. It is made of cold-roll steel box, with plastic splice tray inside, suitable for pigtail, ribbon and bunch cable distribution.

Specification:

Model	Fiber Quantity	Dimension(mm)	Net Weight(kg)
ODF-RS144A	144	438x326.5x231.7	9.5

Features:

Standard size, light weight and reasonable structure

Slide out drawer for easy cable management

FC, SC, ST, LC adapter patch panel for option

Front access panel design for easy operation

Suitable for 19’’ or 23’’ standard optic distribution cabinets

With metal front cover

12pcs splice trays (each 12fibers)

18pcs adapter plates (each 8pcs adapter ports)

Max. capacity 144 fibers

4 fiber cable entry ports at rear side

White or black color

Application:

Telecommunications

Fiber to the home (FTTH)

LAN / WAN

CATV

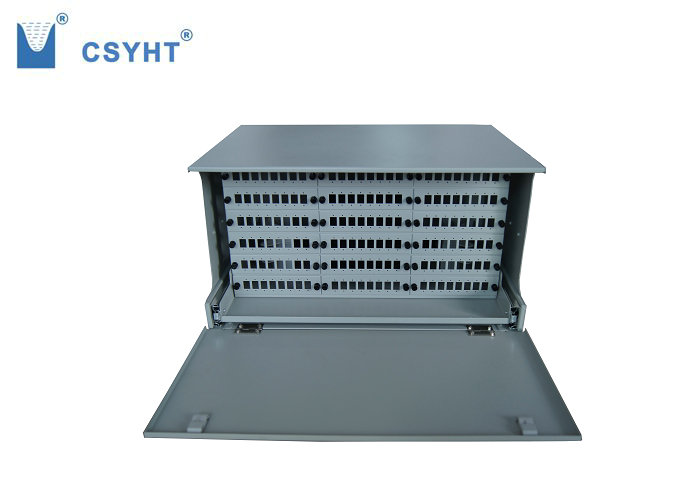

Pictures:

144 core slidable type fiber optic patch panel with rack mounted for cabinet
