DIN Rail IP45 6 SC Duplex Fiber Optic Terminal Box 4 Ports

Brand Name : CSYHT / OEM

Model Number : DIN-00

Certification : ISO ROHS CE PONY

Place of Origin : CHINA

MOQ : 20 Pieces

Price : USD 6-8 /Piece

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 5000 Pieces / Day

Delivery Time : 5-8 workdays

Packaging Details : Individual Box & Outer Carton or According to client's request

Product Name : High Quality 12 Port FOBOT SC LC FC ST DIN Rail Mount Fiber Optic Splice Terminal Box

Application : Indoor Rack Mounted Box

Adapter Port : 12 SC Simplex adapter ports

Dimension : 133x136.6x35 MM

Material : Metal-Aluminum

Cable Port : 4 ports

Splicing Capacity : 24 fibers

IP (Ingress Protection) : IP45

Color : Black, White, Grey

Splitter Type : NO

Contact Now

DIN Rail Box 6 SC Duplex or 12 SC Simplex Fiber Optic Terminal Box

Model Number: DIN-00

Describtion:

It is made of alumium, it is with light weight for easy installation, very suitable for protective connection of fiber optic cable and pigtail, usually it is mounted on the din rail.We also match metal bracket, so that it can be installed in the cabinet.

Specification:

P/N DIN-00 Dimensions
133x136.6x35 mm
Material Metal- aluminum Color Gray, White
IP Rate IP45 Splicing Capacity 12/24 Fibers
Adapter Port 12 SC Simplex adapter ports Cable Port
4 ports
Usage Indoor Usage Application Wall or Floor Mounting
Splice Color Blue or Customized

  • Mini DIN rail mounted enclosure 015VU offers many options how to install into densely populated industrial cabinets assuring at the same time easy installation and maintainance!

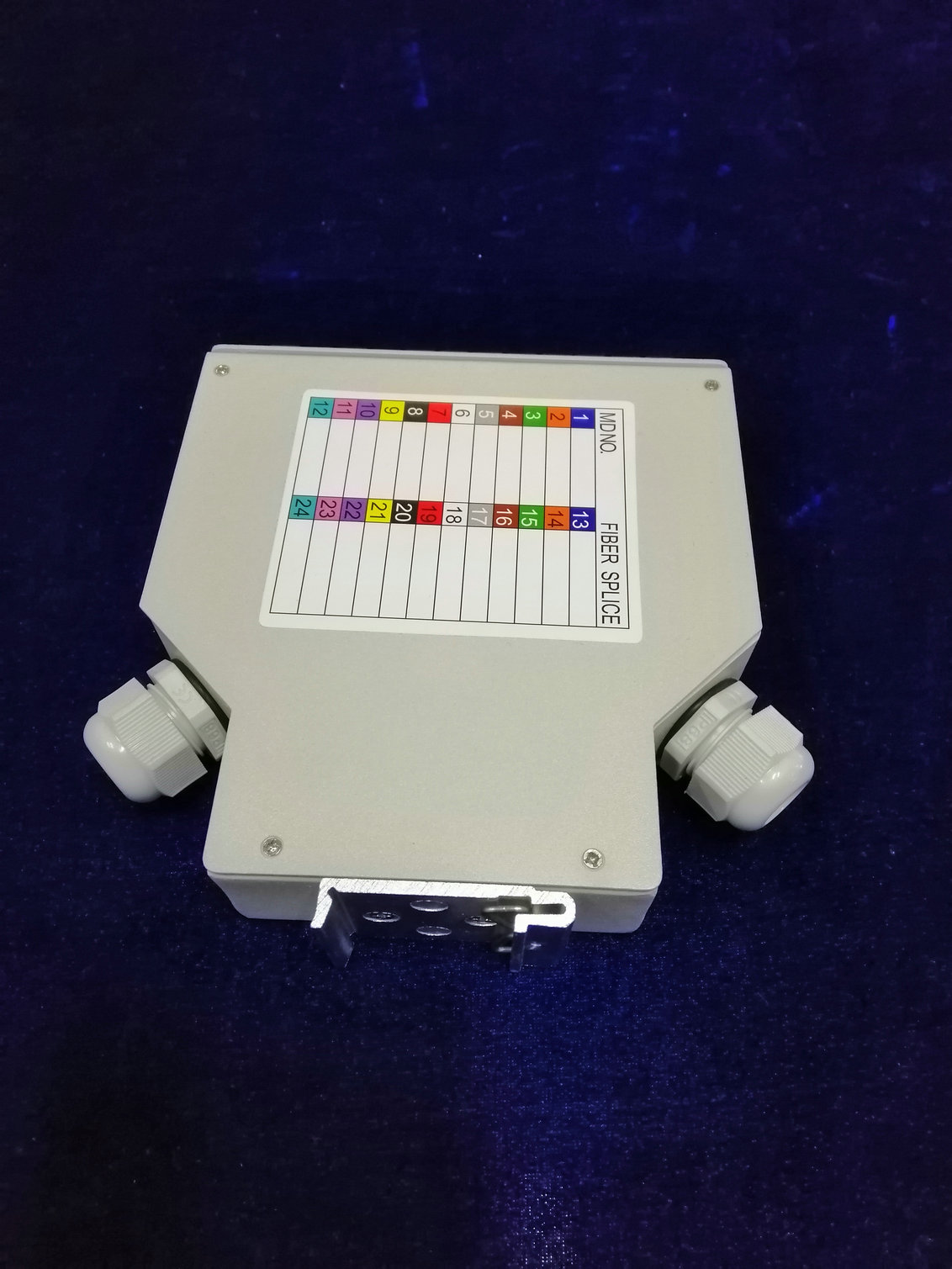

  • DIN rail clip can be fixed to 3 different places, and the cable glands for cables 6 to 12 mm in diameter to 4 different places!

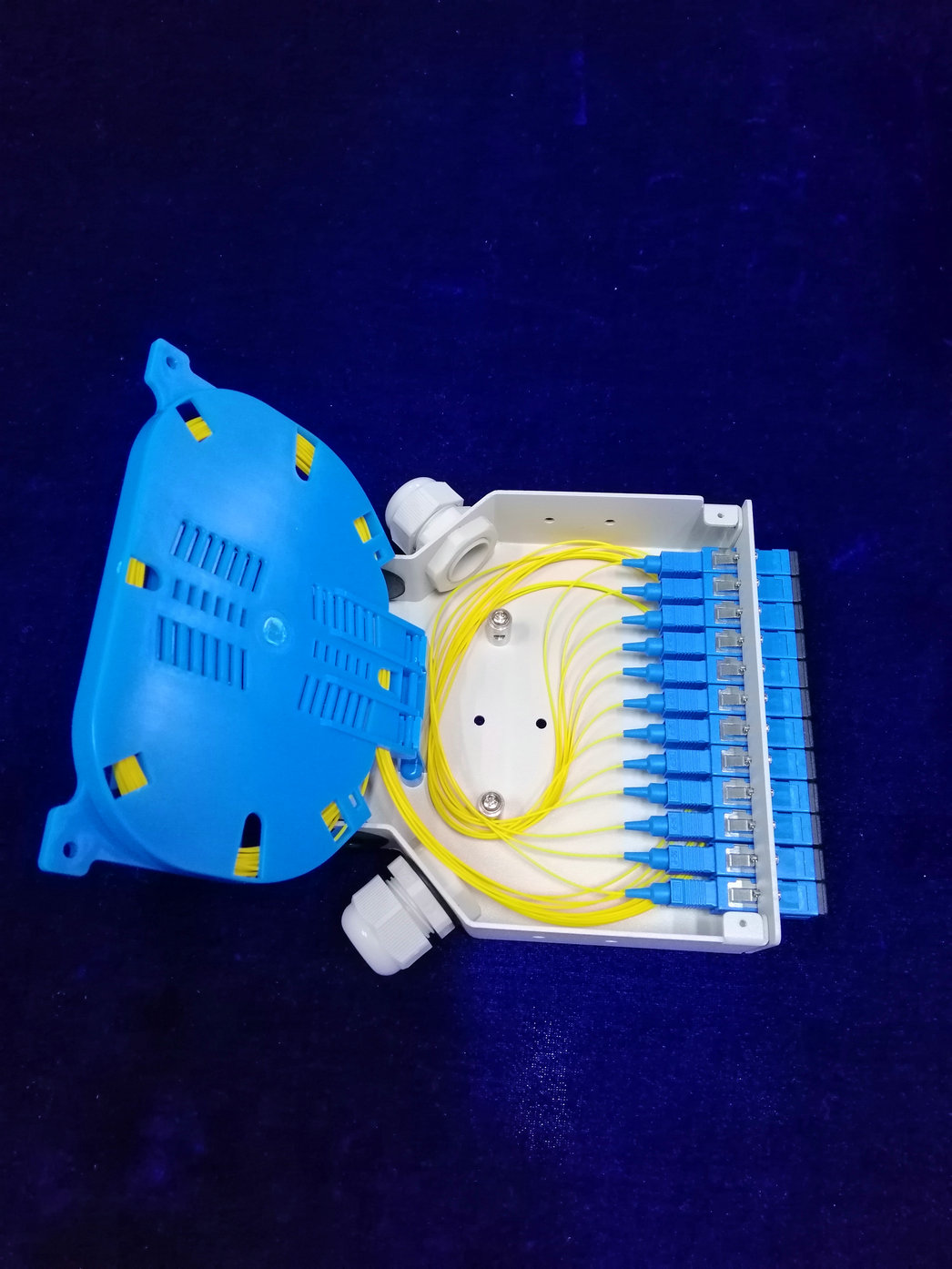

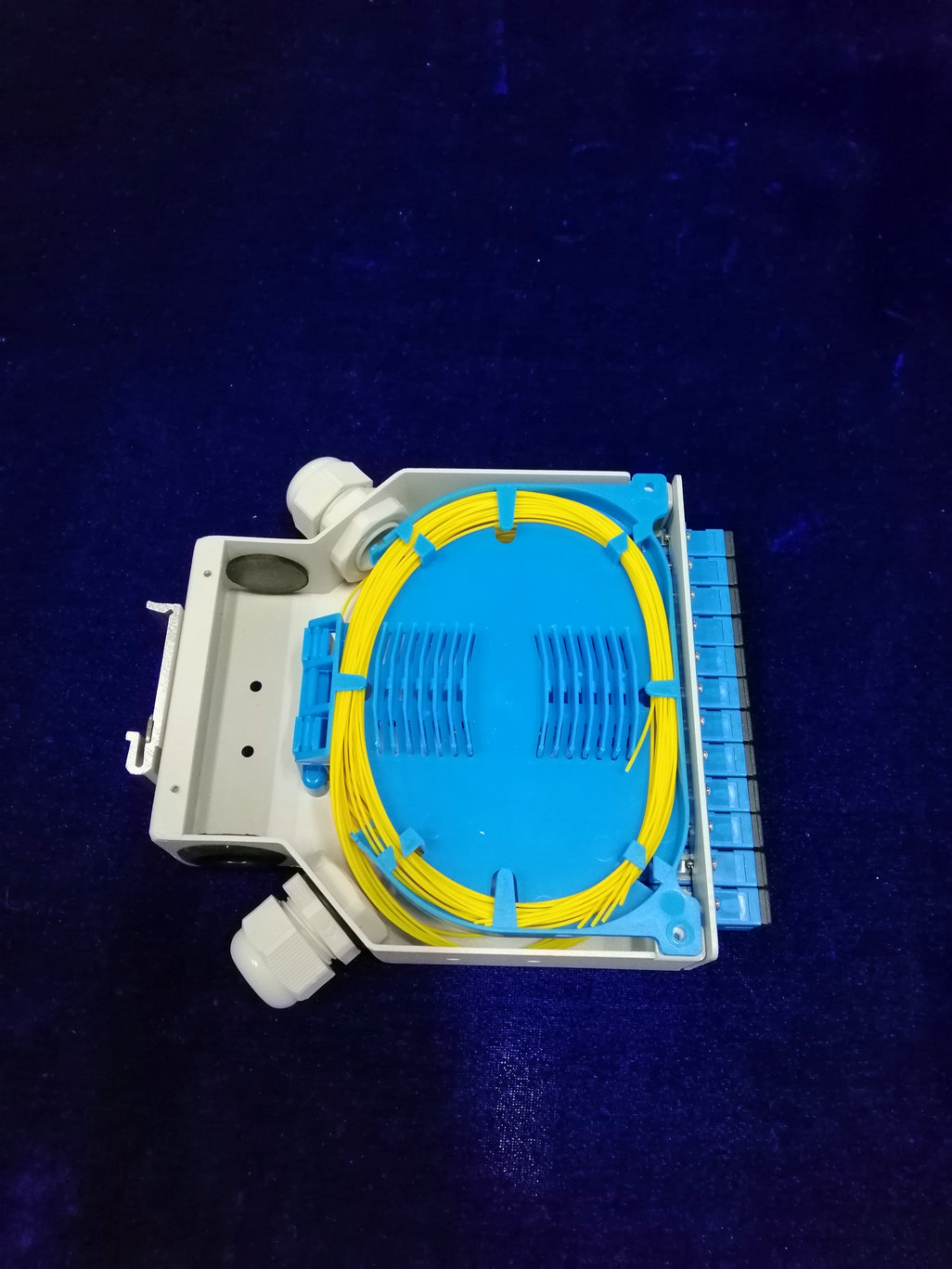

  • Hinged type splice cassette with integrated 2 splice protector holders with double height is opening by 120° allowing easy access to the separate distribution part with adapters!
  • The industrial fiber optic diistributor 015VU accepts 12 SC or 12 LC Duplex adapters and up to 24 splices. Front plates for 6 SC, 6 ST/FC and for 8 ST/FC adapters available upon request.

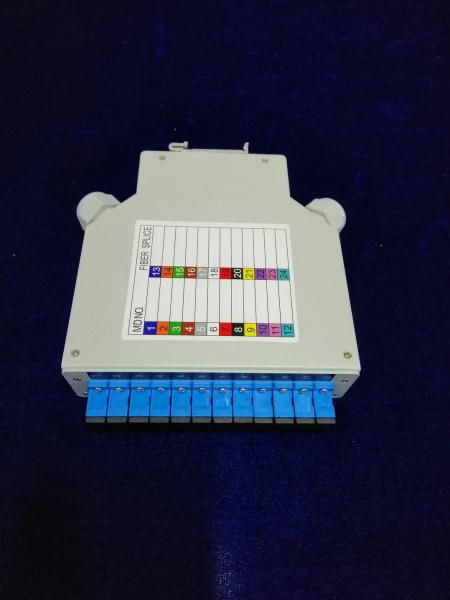

  • Kit includes housing with 4 cable entries, front plate, cover with an ID label for marking fibers, 2 rubber plugs for unused cable entries, splice cassette for 24 splices with 2 integrated splice protector holders, 2 cable glands IP68 M20, 2 strength member connectors, screws for adapters, and DIN rail clip.

Pictures:

DIN Rail IP45 6 SC Duplex Fiber Optic Terminal Box 4 Ports

DIN Rail IP45 6 SC Duplex Fiber Optic Terminal Box 4 Ports

DIN Rail IP45 6 SC Duplex Fiber Optic Terminal Box 4 Ports

DIN Rail IP45 6 SC Duplex Fiber Optic Terminal Box 4 Ports

DIN Rail IP45 6 SC Duplex Fiber Optic Terminal Box 4 Ports
