MPO Cassette 12FO 19'' Rack Mount Panel 96 Fibers

Product Categories
Shenzhen YHT Broadband Equipment Co. Ltd
Contact Now

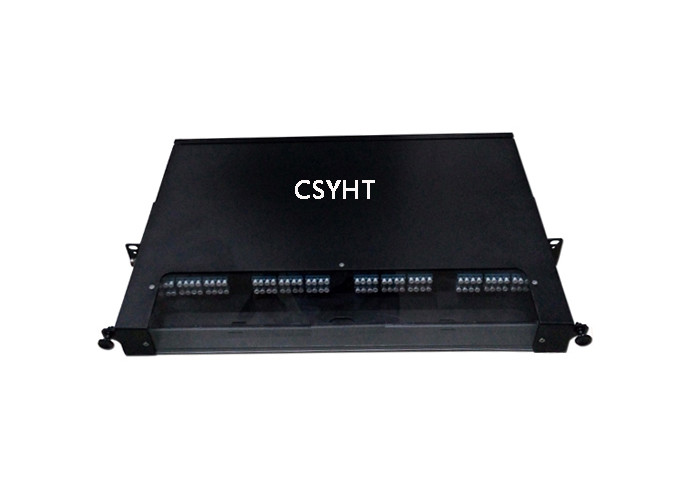

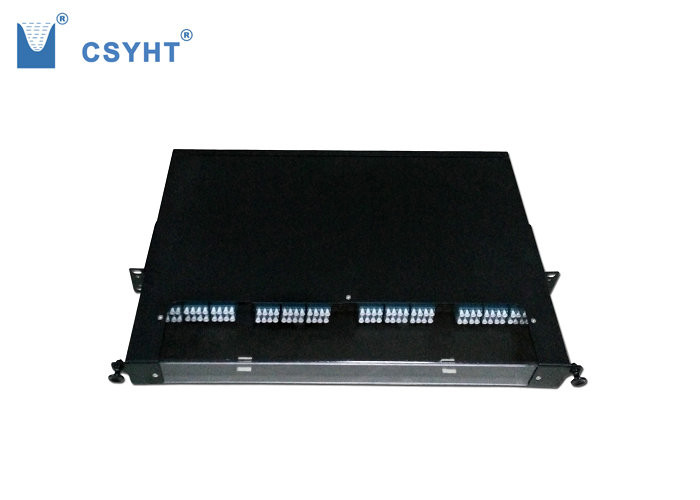

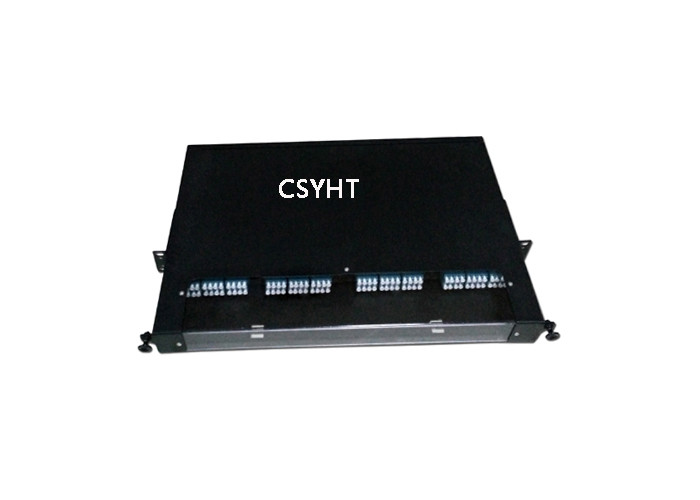

MPO Cassette 12FO 19'' Rack Mount Panel 96 Fibers

  • 1
  • 2
  • 3

Brand Name : CSYHT or Customized

Model Number : HODF1U96CA

Certification : CE ROHS ISO...

Place of Origin : China

MOQ : 100

Price : 19-21USD / PCS

Delivery Time : 15 days

Packaging Details : 2pcs/ctns，46*33*29cm 13KG

Material : Cold roll steel

Max Size : 482.6x300X44.3mm

Color : White gray / White / Black or customized

Adapter : LC, MPO

Installation : 19Inch Rack mount fixed type

Height : 1U

Capacity : 96FO

Contact Now

MPO Fiber Optic Distribution Frame

HODF-1U-96C-A

Description:

This high capacity fiber optic distribution frame support fiber cable fast connection and distribution. It load MTP/MPO and ribbon fiber cable inside, easy to use by connector plug. It is an ideal equipment for supporting the fiber distribution in high-density capacity data center. It has simple & fast installation, compact design, high precision, plug and play etc. advantages.

Features:

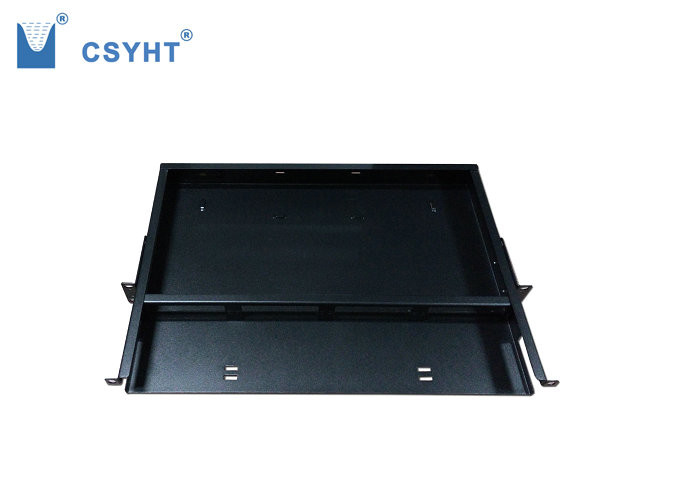

Made by cold roll steel, electrostatic powder spraying.

Fixed type, with PC material front transparent cover, convenient for observation and maintenance.

Its cover is easy to open and close by using button.

Back side with 2 oval port 22*60mm for cable entry.

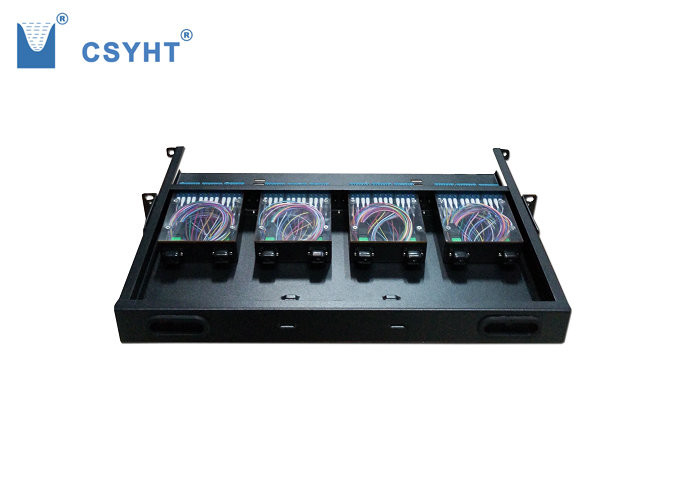

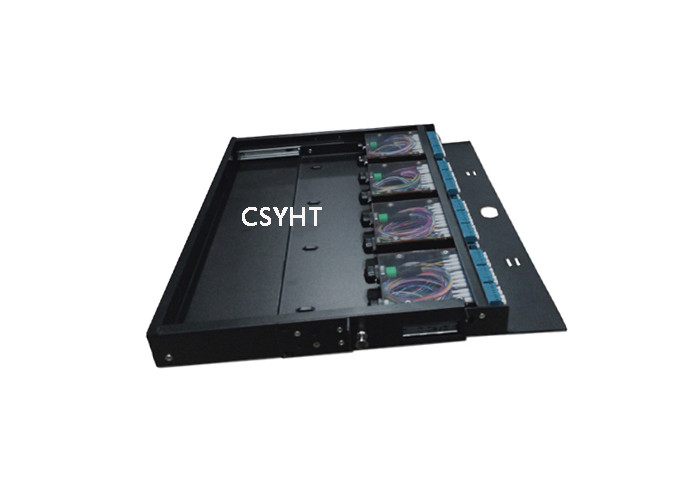

Load max. 4pcs MTP/MPO cassette (Model: MB-M015).

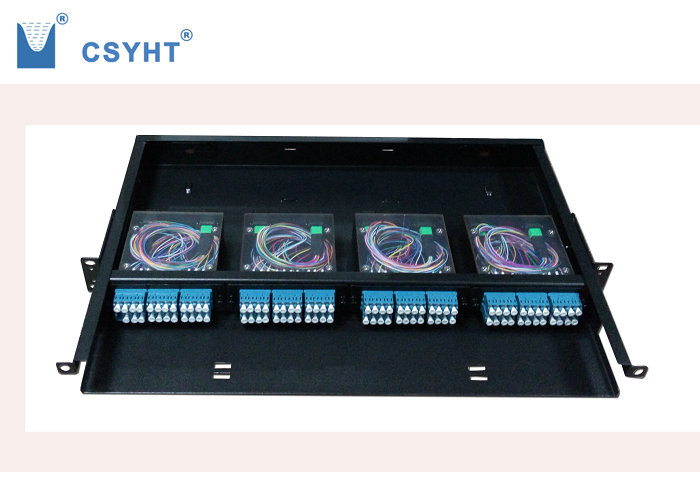

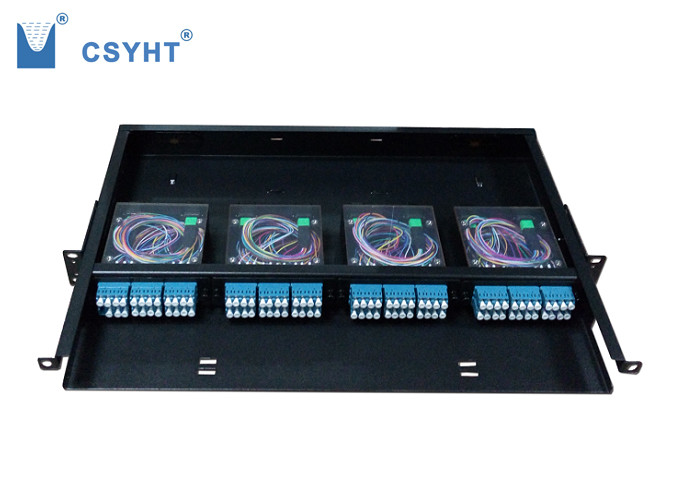

Each MTP/MPO cassette can load 6pcs LC quad adapter & 2pcs MTP/MPO adapter, max. 24fibers.

The MTP/MPO cassette with PC material transparent cover, easy to observation and maintenance.

Application:

Data center, Network room

Specification:

Model Max. capacity

Dimension

(W*D*H)

 Material Cassette Qty
HODF-1U-96C-A 96 fibers 482*300*44.3mm

Cold roll steel;

PC material front transparent cover

 4pcs MB-M015

Cassette Specification:

Model Dimension Adapter type & Qty Material The length of ribbon cable
MB-M015 88*100*31mm

LC quad

(without flange)

 MTP/MPO

Cold roll steel;

PC material top transparent cover

 350mm
6 pcs 2 pcs

Product Details :

MPO Cassette 12FO 19'' Rack Mount Panel 96 FibersMPO Cassette 12FO 19'' Rack Mount Panel 96 FibersMPO Cassette 12FO 19'' Rack Mount Panel 96 FibersMPO Cassette 12FO 19'' Rack Mount Panel 96 FibersMPO Cassette 12FO 19'' Rack Mount Panel 96 Fibers

MPO Cassette 12FO 19'' Rack Mount Panel 96 FibersMPO Cassette 12FO 19'' Rack Mount Panel 96 FibersMPO Cassette 12FO 19'' Rack Mount Panel 96 FibersMPO Cassette 12FO 19'' Rack Mount Panel 96 FibersMPO Cassette 12FO 19'' Rack Mount Panel 96 Fibers
