36 Fibers IP65 FTTH Fiber Optic Terminal Box 1x16

Brand Name : CSYHT

Model Number : OTB-P023

Certification : CE, ISO, RoHS

Place of Origin : China

MOQ : 50pcs

Payment Terms : L/C, T/T

Supply Ability : 600pcs/day

Delivery Time : 10days

Packaging Details : Carton

Product Name : FTTH Terminal Box

Material : ABS plastic

Capacity : 36 Fibers

Dimension : 232x358.5x130.5mm

Adapter port : Max. 18pcs SC simplex adapters

Waterproof : IP65

Contact Now

36 Fibers ABS Plastic 1x16 PLC Splitter FTTH Fiber Optic Terminal Box

Description:

OTB-P023 is a fiber optic terminal box that suitable for optical fiber splicing, distribution and protection. It is reasonable design for fiber arrangement, and for outdoor wall mounted and pole mounted application.

Features:

Material: ABS plastic

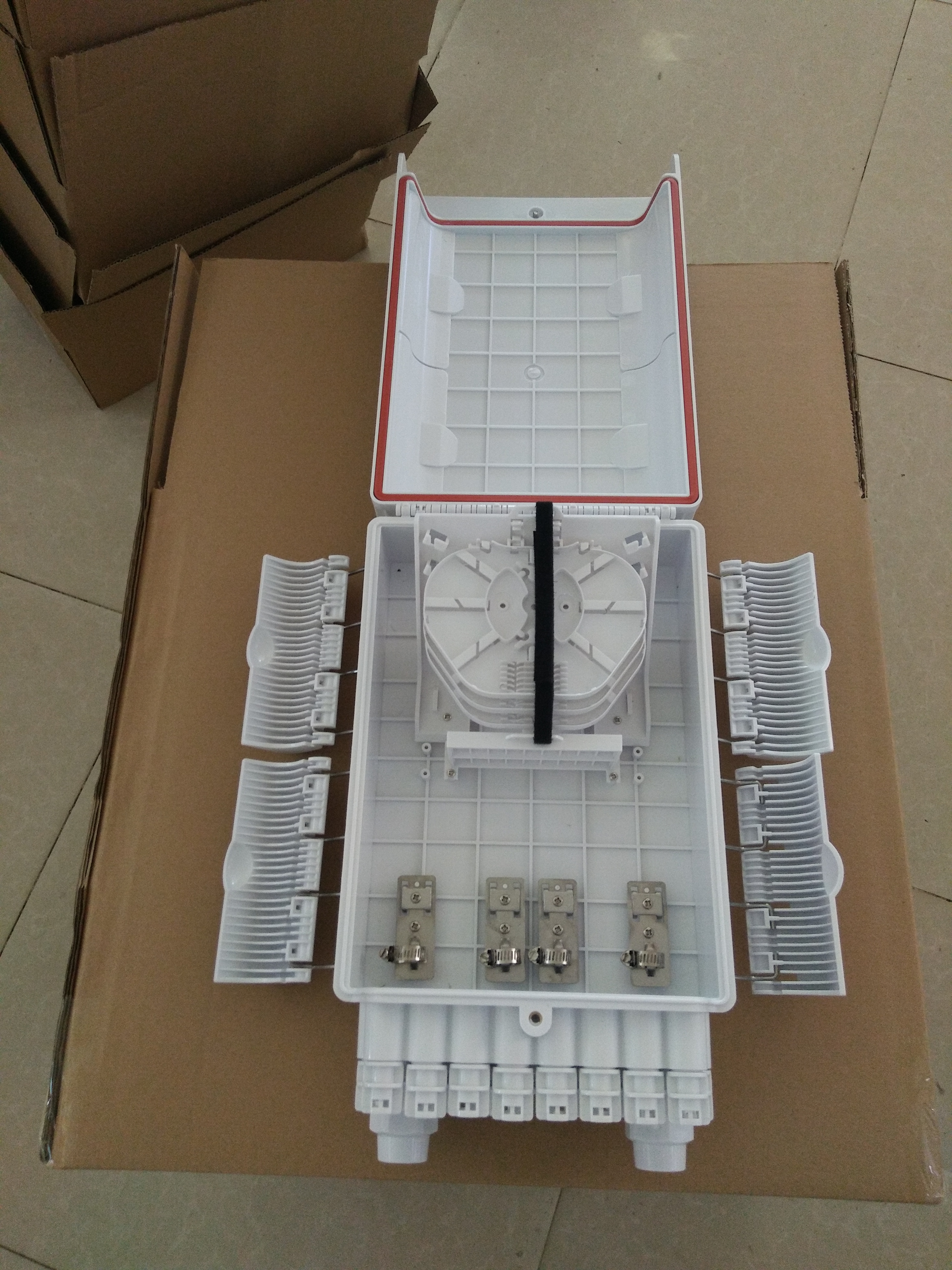

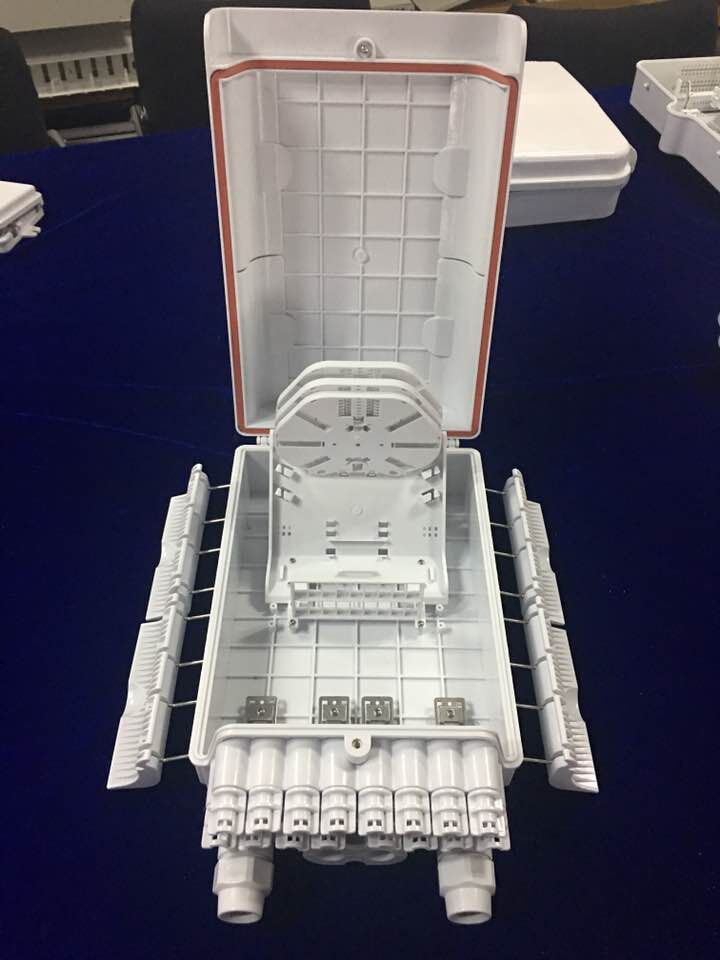

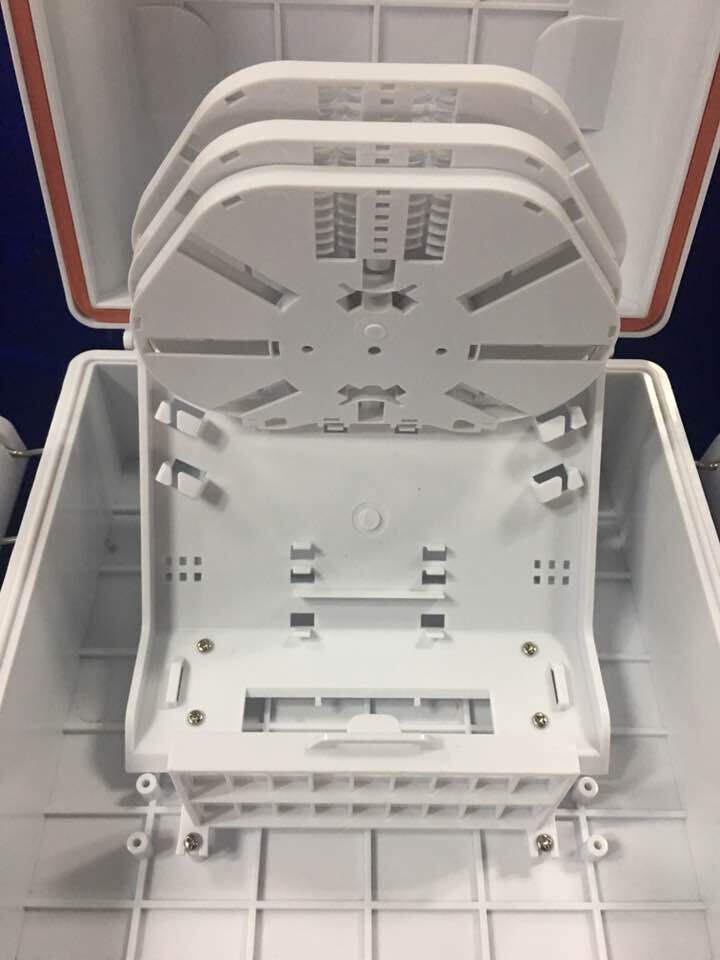

3pcs fiber optic splice trays, each 12 fibers; 36 fibers (Max.can load 4pcs tray for 48 fiber splicing)

Can load 18pcs SC simplex adapter

Can load 2pcs 1:8 PLC splitter or 1pc PLC 1:16 steel tube type splitter

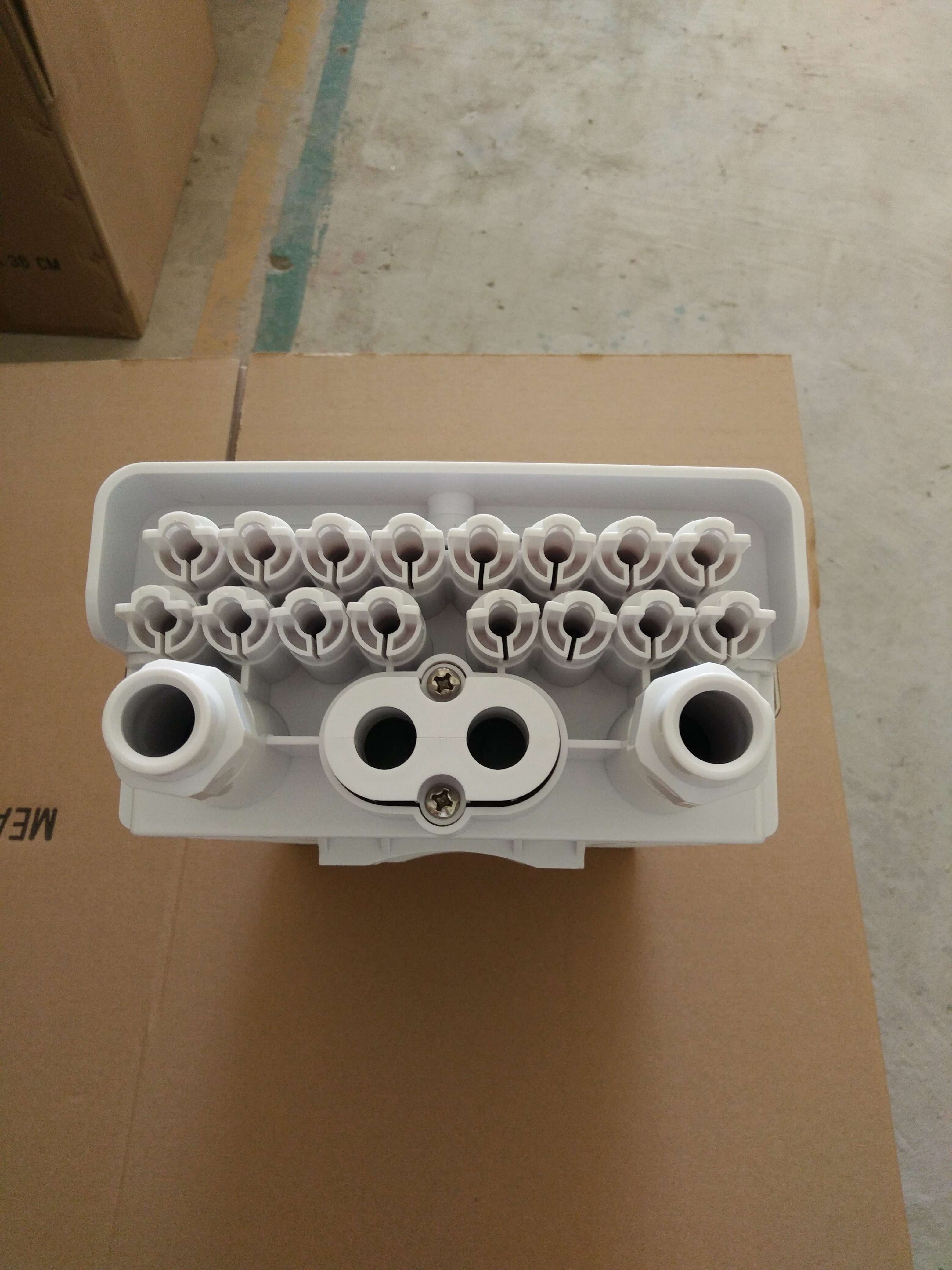

2pcs Φ15mm entry cable ports;2pcs Φ18mm entry cable ports & 16pcs 2*3mm drop cable ports

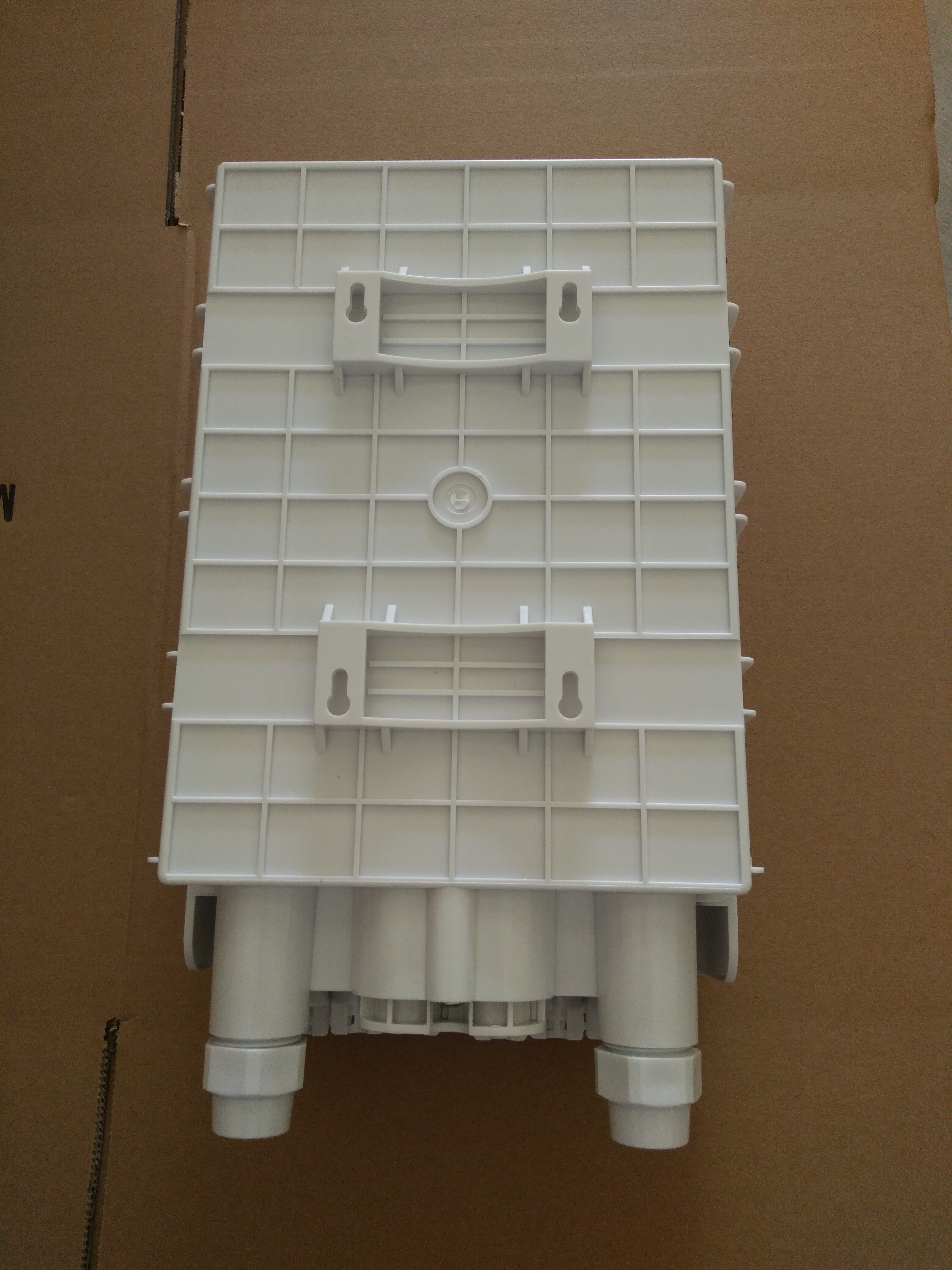

Wall mounting and pole mounting application

Waterproof, outdoor using, IP65

Specification:

Model Capacity Dimension Adapter port
OTB-P023 36 fibers 232x358.5x130.5mm Max. 18pcs SC simplex adapters

Application:

FTTH access network.

Telecommunication Networks

CATV Networks

Data communications Networks
