FTTH 8 SC Wall Mount 8 Cores Fiber Optic PLC Splitter Box

Shenzhen YHT Broadband Equipment Co. Ltd
Contact Now

FTTH 8 SC Wall Mount 8 Cores Fiber Optic PLC Splitter Box

  • 1
  • 2
  • 3

Brand Name : CSYHT

Model Number : OTB-C08

Certification : ISO9001:2005

Place of Origin : CHINA

MOQ : 50pcs

Price : 2.8USD

Payment Terms : T/T

Supply Ability : 3000pcs per week

Delivery Time : 7 working days

Packaging Details : carton

Material : ABS

Color : white or customerize

Capacity : 8fibers

PLC splitter : 1*8

Application : Indoor wallmount or polemount

Size : 130*199*28.5MM

Cable ports : 2 cable ports suitable for max. 15mm cable in and out.

Packing : 50pcs/ctn

Contact Now

fiber optic terminal box 8 SC port indoor wallmount 8ores fiber optic PLC splitter box
Description:
OTB-C08 is used for FTTH, it provide protective connection for fiber optic cable and pigtail. The box is ABS material, mainly use for indoor and corridor installation.
Features:

1) 2 cable ports suitable for max. 15mm cable in and out.

2) Cable no cutting and direct connection.

3) Turnover splice tray for max. 12 fiber splicing.

4) Snap-in type, easy to open and close, can repeatable use.

5) Can load 1pc 1x8 PLC steel tube type splitter & 1pc SC simplex adapter for input and 8pcs SC simplex adapters for output.

Accessory:

Item Specification Qty Remark
Heat shrinkable tube ¢3.0*45mm 8PCS
Nylon cable ties 3*120mm 6PCS
Plastic expansion tubes φ6 3PCS
Cross Countersunk head tapping screws M3.5*25 3PCS
Adapter SC simplex 8PCS optional

Packing Information:

Carton size Gross weight Qty
58*46*39CM 25.60 KGS 80PCS/CTN
Application:
FTTH access network.
Telecommunication Networks
CATV Networks
Data communications Networks
Product Details:

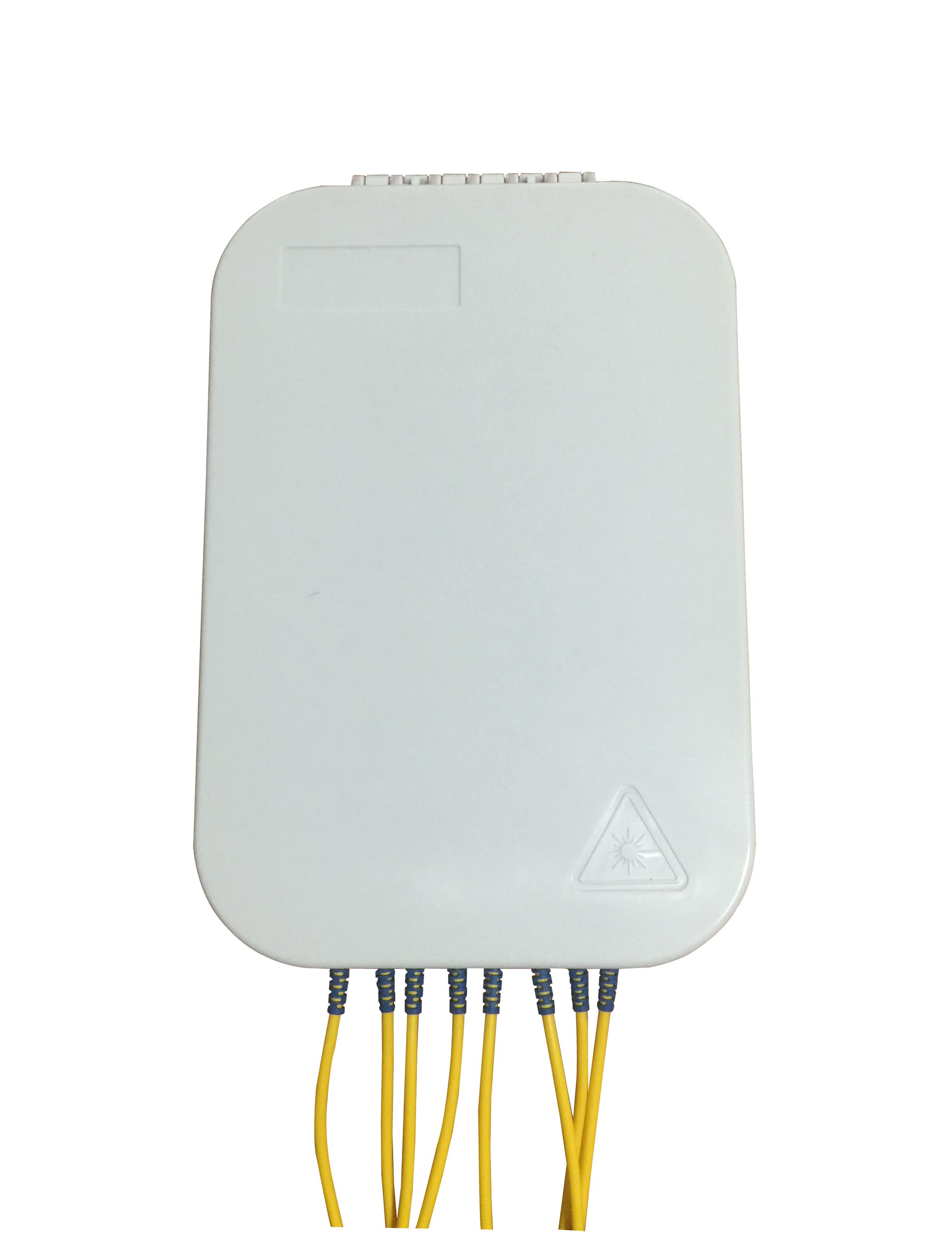

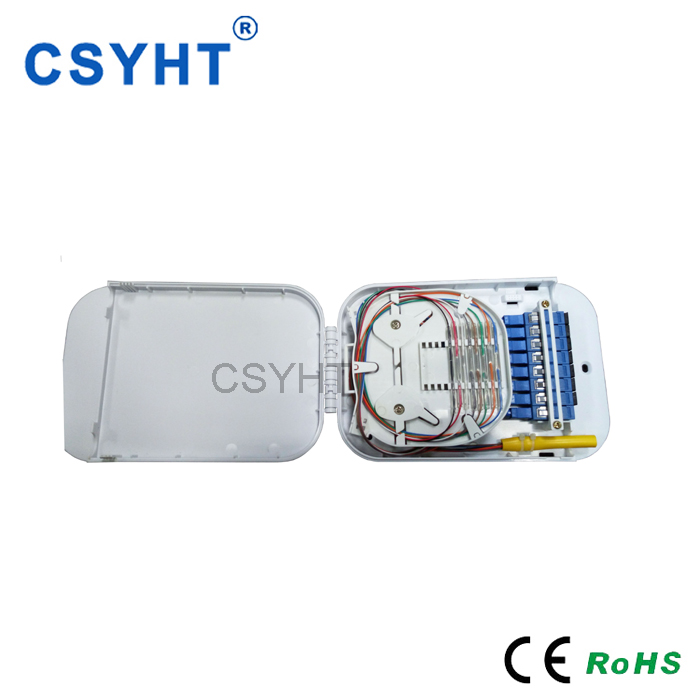

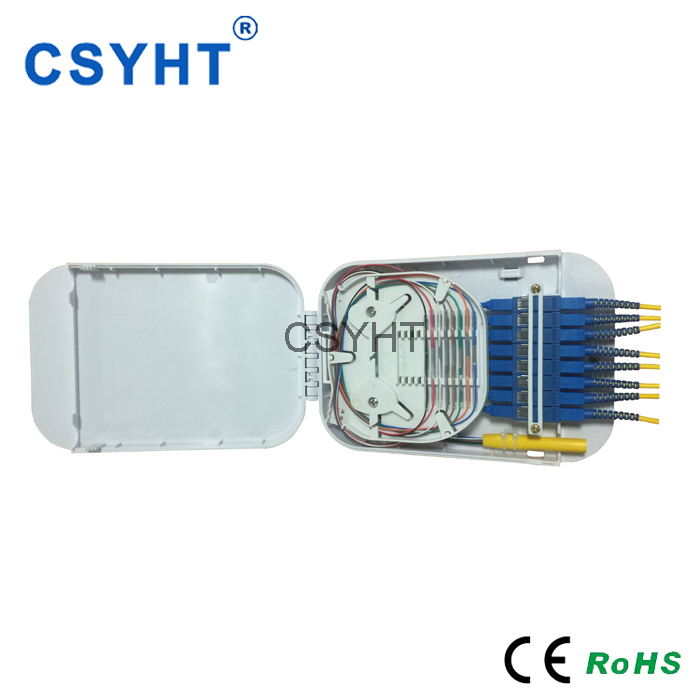

FTTH 8 SC Wall Mount 8 Cores Fiber Optic PLC Splitter Box
FTTH 8 SC Wall Mount 8 Cores Fiber Optic PLC Splitter Box
FTTH 8 SC Wall Mount 8 Cores Fiber Optic PLC Splitter Box
