12fibers 9SC 1X8 PLC Fiber Optic Terminal Box Aerial Hanged

Name: 12fibers 9SC 1X8 PLC Fiber Optic Terminal Box Aerial Hanged
Brand: CSYHT
Price: 7.5 USD

Quality 12fibers 9SC 1X8 PLC Fiber Optic Terminal Box Aerial Hanged wholesale

Brand Name : CSYHT

Model Number : P040

Place of Origin : CHINA

MOQ : 100

Price : 7.5

Supply Ability : 5000pcs/week

Delivery Time : 7 working days

Packaging Details : carton + pallet

Material : ABS material

Color : black

Capacity : 12fibers

Splice tray : 1pc OST-050 splice tray

IP Standard : IP65

Sealing structure : Mechanical sealing

Cable ports : 4 entry cable port for φ6-φ8mm diameter cable in and out

Application : outdoor aerial hanged

Size : 303.15*198.4*72MM

Adapter : 9 SC simplex adapters on PLC cassette

PLC : Available for PLC 1X8

Contact Now

Description:

OTB-P040 is a plastic fiber optic termination box can load 1pc splitter cassette 1x8 and support 8 drop cable output. It has 4 cable entry ports that support cable entry without cutting. It is outdoor aerial hanged for fiber distribution and connection

Features:

ABS plastic material
Mechanical sealing structure
Waterproof, IP65
Two layer space, the upper space with splitter cassette for fiber distribution, the lower space with splice tray
for fiber splicing and connection.
1 fiber optic splice tray OST-050, 12 fiber splicing capacity
4 cable entry ports for φ6-8mm cable, support cable entry without cutting
8 output ports for drop cable 2*3mm
Outdoor aerial hanged application

Specification:

Model	Dimension	Material	Splice tray Qty	Max.capacity	Cable ports
OTB-P040	303.15198.472MM	ABS + UV	1PC Max.	12fibers / 1X8 PLC	4 cable entry ports for φ6 - 8mm cable, support cable entry without cutting 8 output ports for drop cable 2*3mm

Accessories:

Item	Name	Specification	Qty
1	Heat shrinkable protection sleeve	45MM2.61.2mm	As per capacity
2	Cable tie	3mm*120mm / white	5pcs
3	Aerial hanged kit	OTB-P038-040 / stainless steel	2pcs

Details:

12fibers 9SC 1X8 PLC Fiber Optic Terminal Box Aerial Hanged

Product Tags:

1X8 PLC Fiber Optic Terminal Box

9SC Fiber Optic Terminal Box

12fibers Aerial Hanged Splice Closure

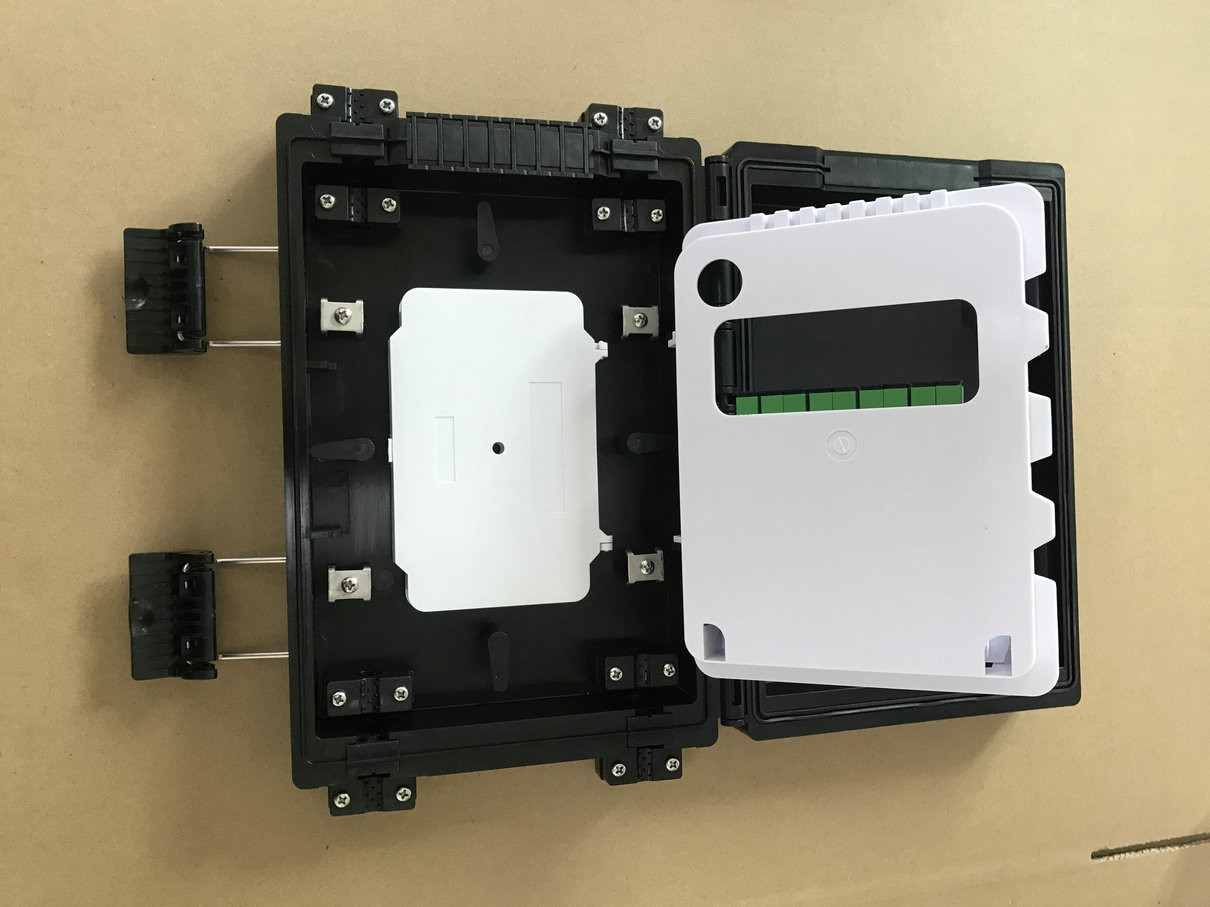

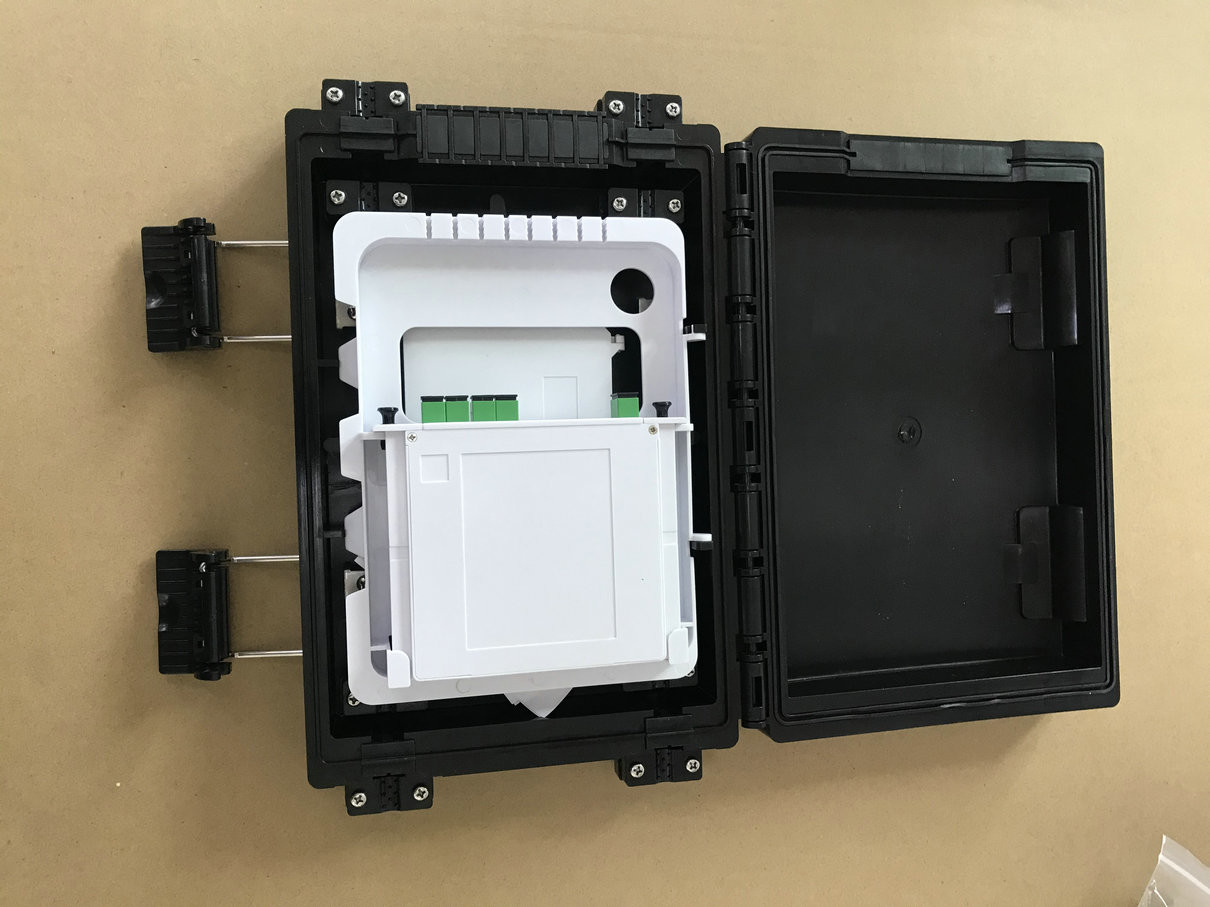

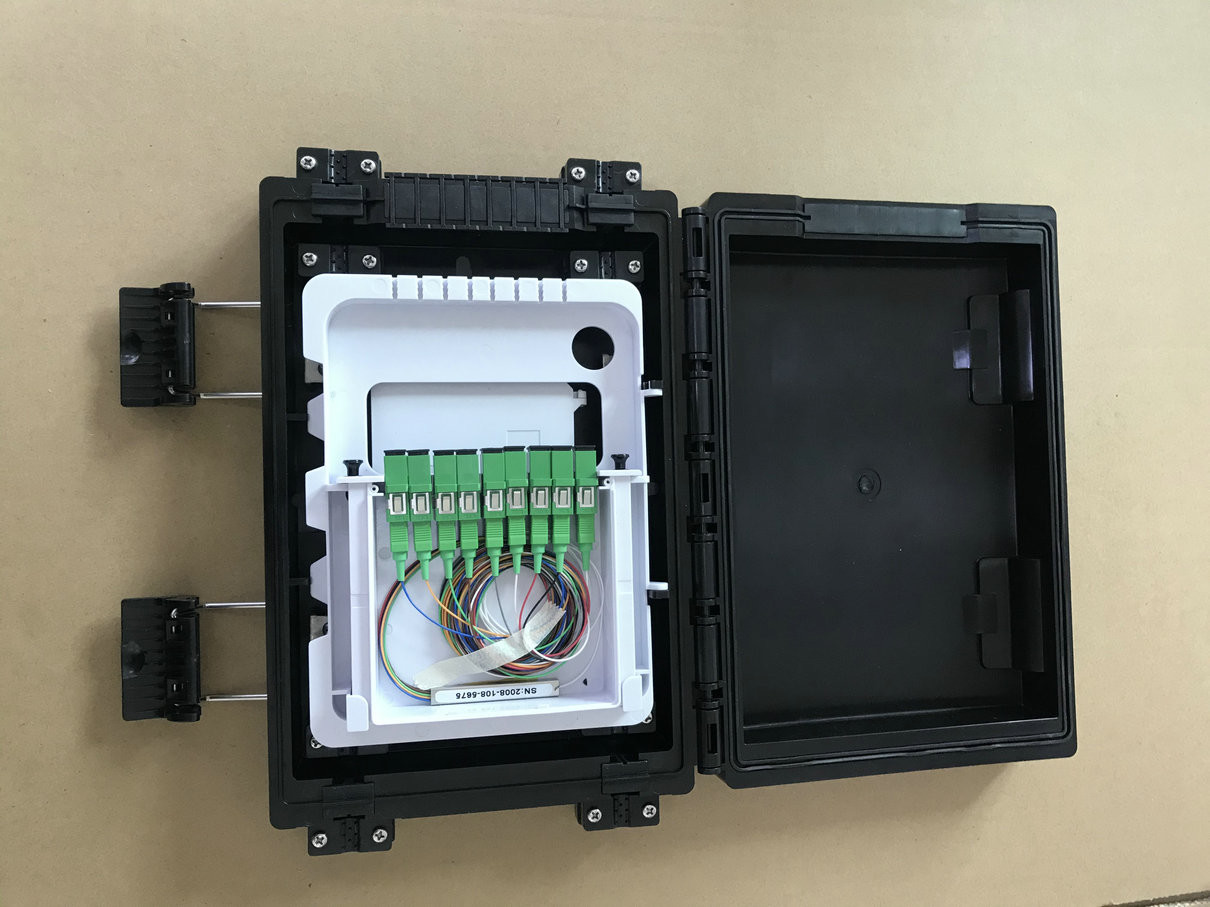

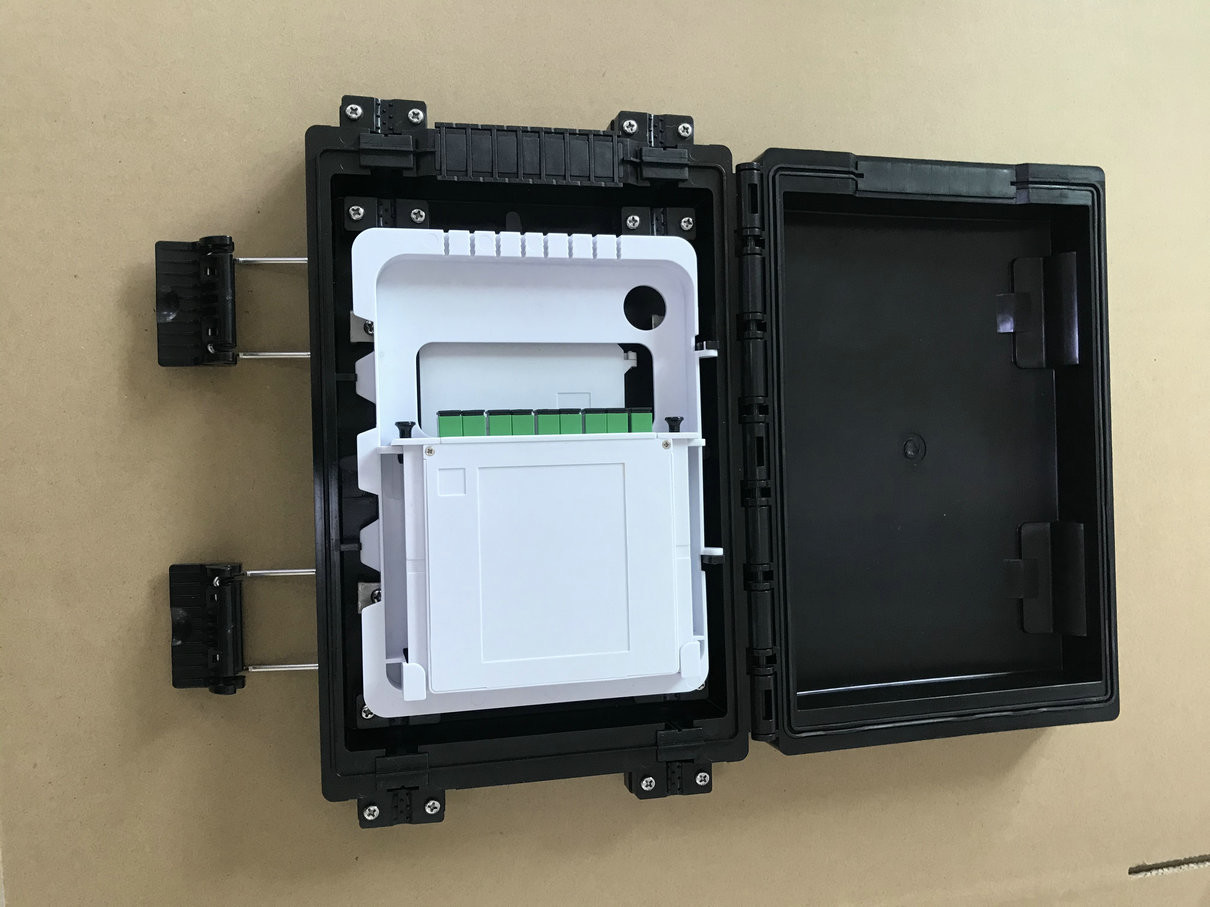

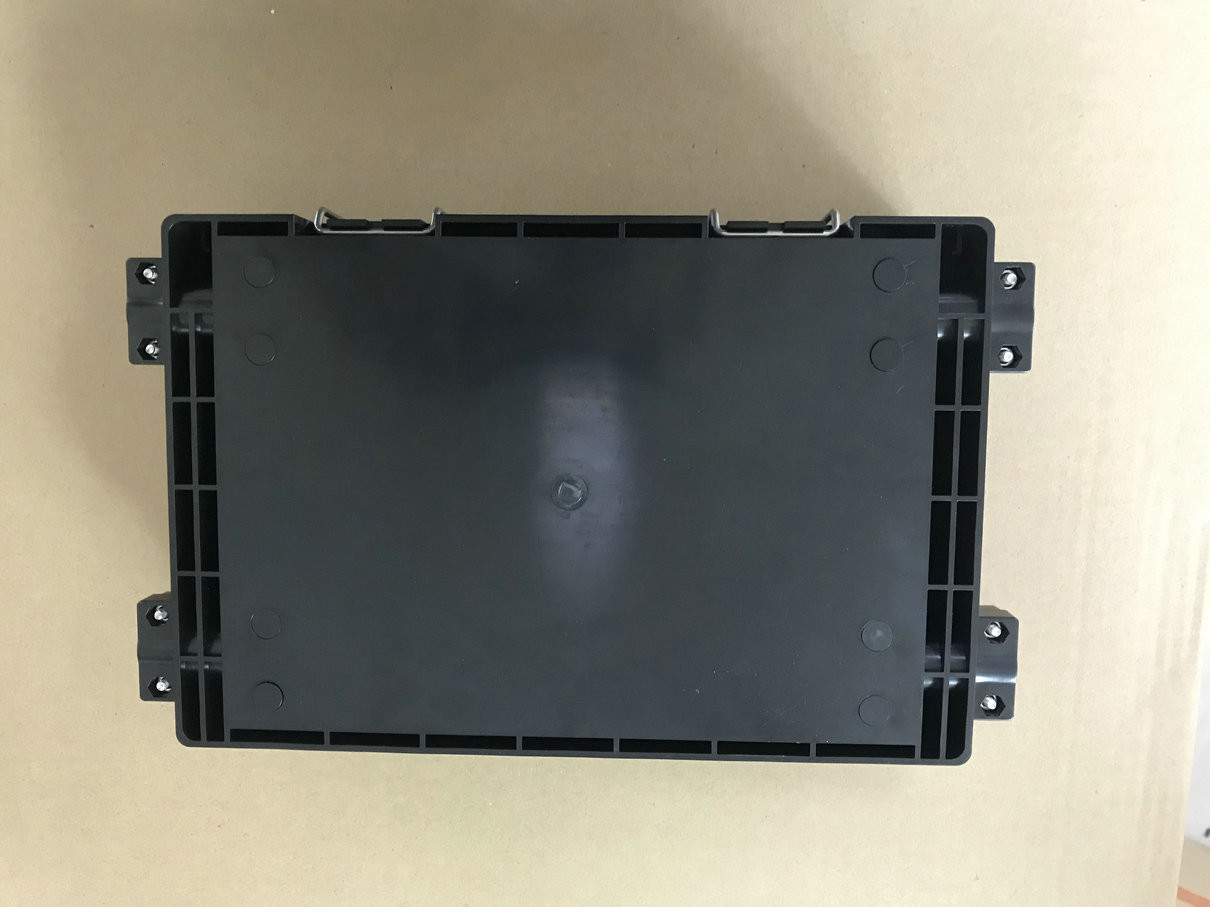

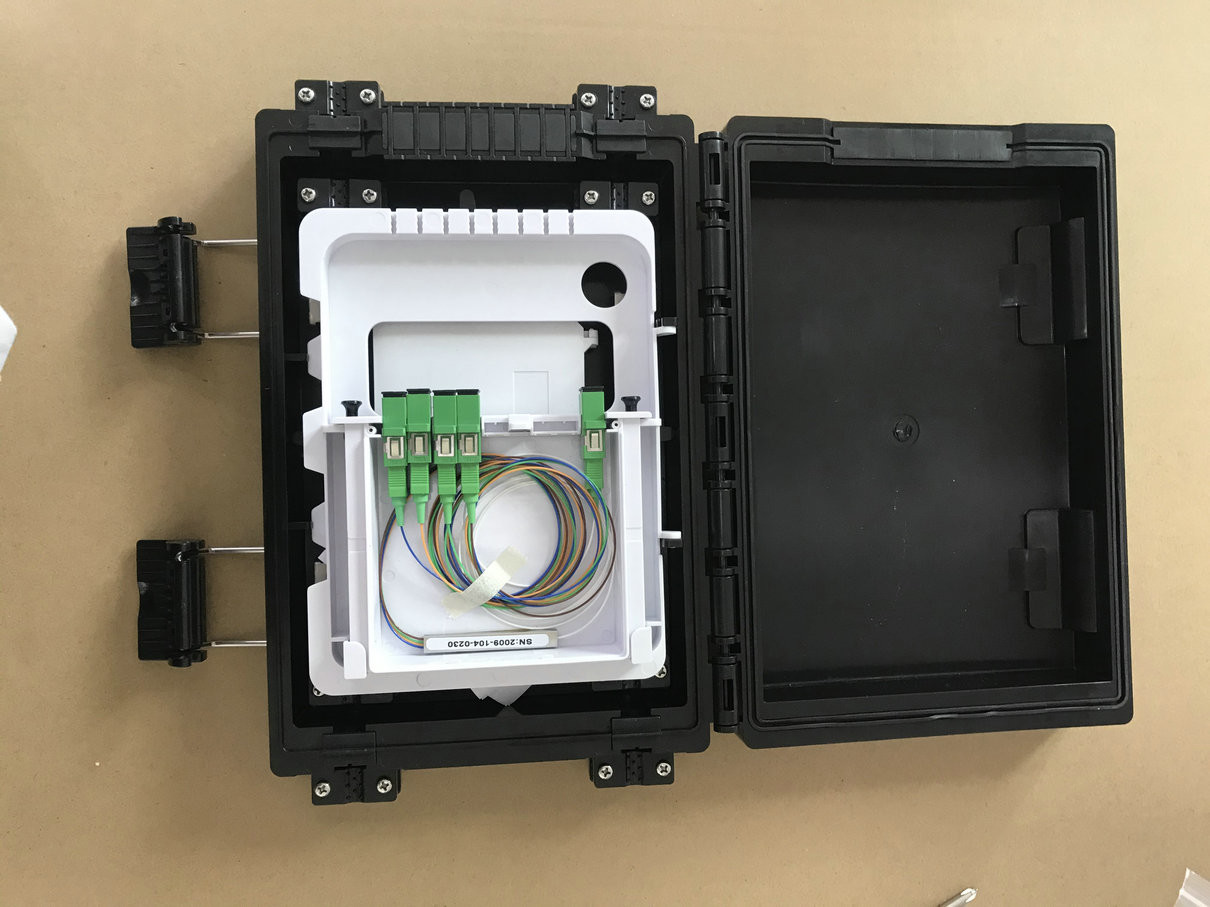

12fibers 9SC 1X8 PLC Fiber Optic Terminal Box Aerial Hanged Images
