Home > Fiber Optic Closure >

48 Core FTTH IP68 PP Inline Fiber Optic Splice Closure

Product Categories
Shenzhen YHT Broadband Equipment Co. Ltd
Contact Now

48 Core FTTH IP68 PP Inline Fiber Optic Splice Closure

  • 1
  • 2
  • 3

Brand Name : CSYHT

Model Number : CH026

Certification : ISO9001:2015

Place of Origin : china

MOQ : 50

Price : $11.5

Payment Terms : T/T, L/C

Supply Ability : 500 Set/Sets per week

Delivery Time : 7days

Packaging Details : Carton

Product name : fiber optic splice closure,junction closure

Max capacity : 72ibers

Ports : 6 cable ports (3 in 3 out) for optical cable entry & exist

Size : 330.8*194.7*113mm

Sealing method : mechanical sealing

Material : pp

Application : FTTH System, FTTH FTTB FTTX Network, OPGW Fitting, aerial, underground duct

Protection grade : IP68

Type : horizontal/in-line type

Cable diamete : 8-13mm

Contact Now

pp material inline Type Fiber Optic 48 Core Splice Closure for outdoor

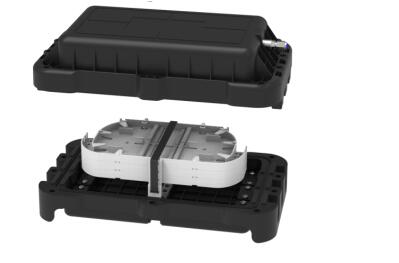

CH026 is an inline type fiber optic splice closure for optical fiber splicing, cable protection. There is silicone sealing gasket between the cover and bottom. It can be outdoor aerial hang application.

Features:

Reasonable design for cable splicing and protection.

Material: PP plastic

6 cable ports (3 in 3 out) for optical cable entry & exist (4pcs Φ8mm, 2pcs Φ13mm).

Max. 3pcs splice tray, each 24 fibers; max. 72 fibers capacity

With fixing cable strengthen core parts

Dust-proof and waterproof, IP65.

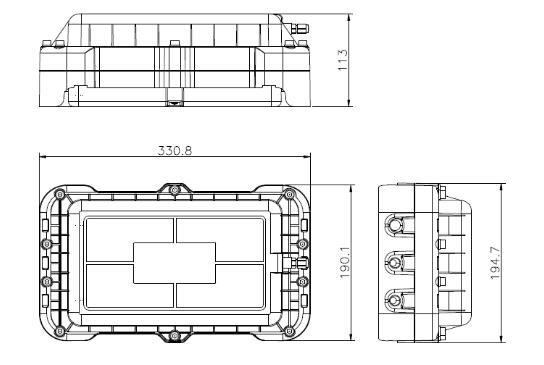

Dimension: (mm)

48 Core FTTH IP68 PP Inline Fiber Optic Splice Closure

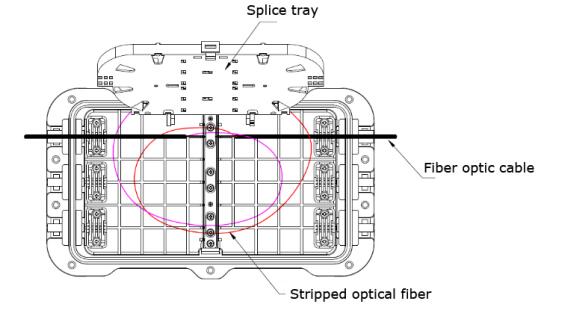

Using instruction:

48 Core FTTH IP68 PP Inline Fiber Optic Splice Closure

Accessories:

Item Specification Qty
Screw M4*25 2pcs
Screw M5*8 2pcs
Shim Ф9*Ф4*0.8mm 2pcs
Hexagon nut M4 2pcs
Insulating tape 0.15*17mm*8 code black 1 reel
Velcro tape 350*15*3mm black 1 pc
Heat shrinkalbe sleeve 45MM*3.0*1.5 As per capacity
Cable tie 3mm*120mm 4 pcs
Cab tube DiameterФ5 1 pc
Inner hexagon spanner S5 1 pc
Cable tie 5*200mm 6 pcs
Plug cap A 4 pcs
Plug cap B 2 pcs

Images:

48 Core FTTH IP68 PP Inline Fiber Optic Splice Closure


YHT is a 16 years professional manufacturer of fiber optic products that certified by ISO9001:2015.

48 Core FTTH IP68 PP Inline Fiber Optic Splice Closure

48 Core FTTH IP68 PP Inline Fiber Optic Splice Closure

48 Core FTTH IP68 PP Inline Fiber Optic Splice Closure

48 Core FTTH IP68 PP Inline Fiber Optic Splice Closure

WHY CHOOSE US?
What’s your best price?

Based on the quality of our products and the quantity of your order. We would quote the

best matching price all the time.
Can you provide OEM/ODM service?
Yes, we can. Please let us know your detail requirements
Can you list some of your main customers?
Domestic: China Telecom, China Mobile, China Unicom, Huawei, Fiberhome, ZTE, etc.
Abroad: Furukawa, Fujikura, TOT, Etisalat, STC, Commscope, Verizon, Duratel, Smart, etc.
Why choose YHT to cooperate?

1. Reliable & Experienced communication equipment manufacturer for 16 years.
2. First-class production line and strict quality management system.
3. Professional procedure system and bulk production capacity to guarantee fast delivery.
4. Most competitive price to meet your budget.
5. Professional R&D team to design and innovate new products based on our rich experience.
6. Fast & Effective after sales service.One year warranty(free change if quality problem),

three year maintenance.

7. wide products series like FTTH box,ODF,splice closure,pigtail,patch cord and others fiber optic producsts for choosing
