19 Inch 1U 24FO FDF Optic Fiber Distribution Frame With 12 SC Duplex Adapter Port

Name: 19 Inch 1U 24FO FDF Optic Fiber Distribution Frame With 12 SC Duplex Adapter Port
Brand: CSYHT
Price: 6 USD

Quality 19 Inch 1U 24FO FDF Optic Fiber Distribution Frame With 12 SC Duplex Adapter Port wholesale

Brand Name : CSYHT

Model Number : ODF-RS-205

Certification : ROHS, ISO

Place of Origin : Guangdong, China

MOQ : 50 sets

Price : 6~16 USD per set

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 300 sets per day

Delivery Time : about 7 days

Packaging Details : 5 sets per carton

Material : Cold roll steel

Color : Black or grey

Dimension : 430x205x44mm

Type : Slidable type

Application : 19inch rack mounted

Capacity : 12, 24, 48 fibers

Contact Now

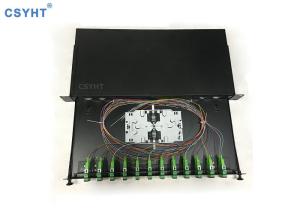

ODF-RS-205 is a 19 inch 1U 24FO FDF optic fiber distribution frame with 12 SC duplex adapter port for rack mounted application. It is produced by YHT - fiber optic product factory.

Features:

High quality cold roll steel, 1.0~1.2mm

The surface is sprayed with electrostatic power, black color (grey white RAL7035 available)

19 inch rack mounted type

With sliding out tray, inside with max. 2pcs splice tray (Model: OST-011 or OST-035)

The rear cable ports are suitable for 2pcs M20 and 2pcs M25 cable PG gland

Double layer adapter plate, different adapter port and capacity are customized

Simple structure and easy operation, popular in European market

19 Inch 1U 24FO FDF Optic Fiber Distribution Frame With 12 SC Duplex Adapter Port

Specification:

Model	Dimension	Capacity	Adapter port	Splice tray
ODF-RS-205	430x205x44mm	12, 24, 48 fibers	12-24 SC simplex, SC duplex, LC duplex, FC simplex, ST simplex ... ports	2pcs OST-011 or OST-035

Accessories:

Heat shrinkable protection sleeve 45mm: 24pcs

Cable ties: 4pcs

Cable guider rings: 4pcs

Cable PG gland M20: 2pcs

Packing information:

Each in one inner box, 5 sets per outside carton,

each carton 55x30x28cm, about 15kgs per carton
