Aerial Inline Fiber Optic Splice Closure Re - Enterable Clip Lock In Core Network

Product Categories

Shenzhen YHT Broadband Equipment Co. Ltd

Contact Now

Aerial Inline Fiber Optic Splice Closure Re - Enterable Clip Lock In Core Network

Name: Aerial Inline Fiber Optic Splice Closure Re Enterable Clip Lock In Core Network
Brand: CSYHT
Price: 21 USD

Quality Aerial Inline Fiber Optic Splice Closure Re - Enterable Clip Lock In Core Network wholesale

Brand Name : CSYHT

Model Number : CH027

Certification : CE RoHS ISO

Place of Origin : Shenzhen China

MOQ : 10units

Price : USD 21 per unit

Payment Terms : L/C, T/T, Western Union

Supply Ability : 100000 pcs per month

Delivery Time : 10 days for 3000pcs

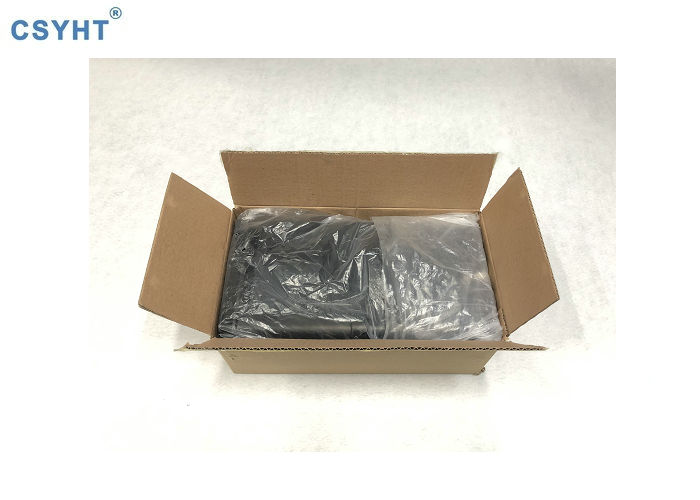

Packaging Details : 6pcs/ctn, 17.3kg/ctn,

Product name : Aerial Inline Re-enterable Clip Lock Fiber Optic Splice Closure For Fiber Cable In Core Network

Color : Black

Material : high quality ABS plastic

Application : Aerial hang up

Max capacity : Max. 144 Cores

Fiber optic splice tray : Max with 3pcs tray for 144 FO

Dimension : 330x183x115.5mm

Ports : 3 in & 3 out

Services : OEM/ODM available

Use : FTTX FTTH Backbone or Trunk Network

Contact Now

Aerial Inline Re-enterable Clip Lock Fiber Optic Splice Closure For Fiber Cable In Core Network

Model Number: CH027

Product Description:
CH027 is an inline type fiber optic splice closure for optical fiber splicing, cable protection. There is silicone sealing gasket between the cover and bottom. It can be outdoor aerial hang application.

Features:
(1) Made of high quality Acrylonitrile Butadiene Styrene(ABS), Resistant Sunlight(UV).
(2) Clip lock easy to open and close.
(3) Outdoor waterproof IP65.
(4) 12 to 24, 48, 60, 72, 96, 120, 144 fibers.
(5) Max 3pcs splice tray, 48core per splice cassette. Each tray has a lid cover, better protect.
(6) With fixing cable strengthen core parts.

Specification:

Dimension(mm)	330x180x115.5mm
Function	Outdoor aerial hang up
Cable ports	3 inlet & 3 outlet
Max Capacity of Splice Trays/ Closure	3
Max Capacity	72 ( Single ) / 144 (double)
Sealing Structure of Box	Silicon Gum Material

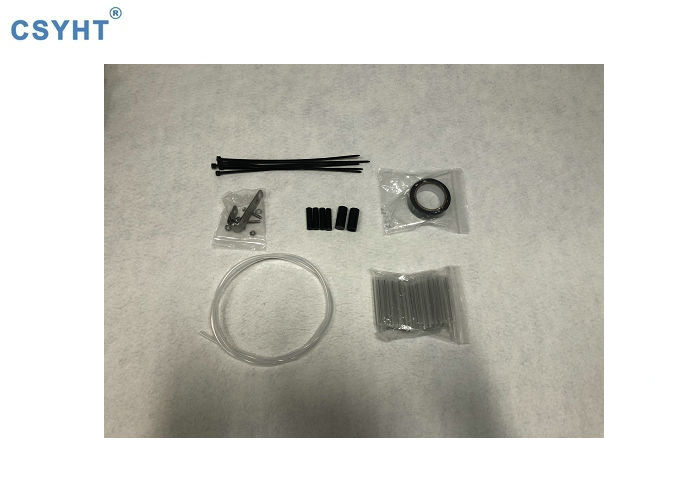

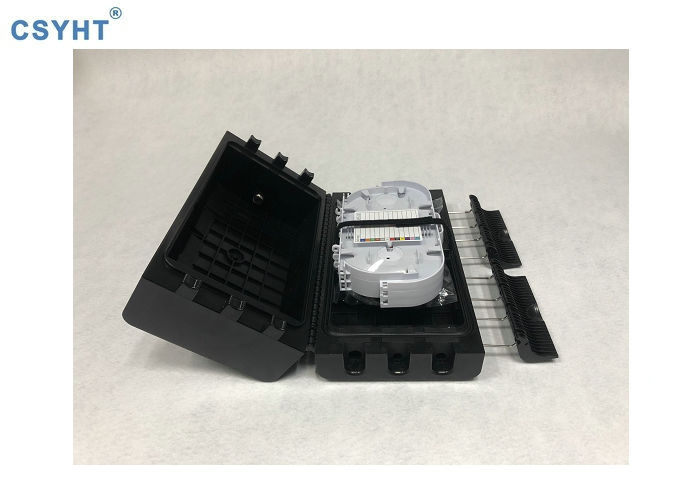

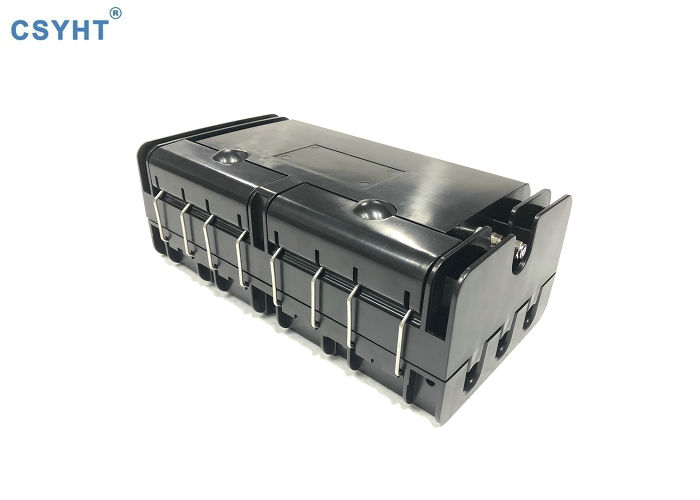

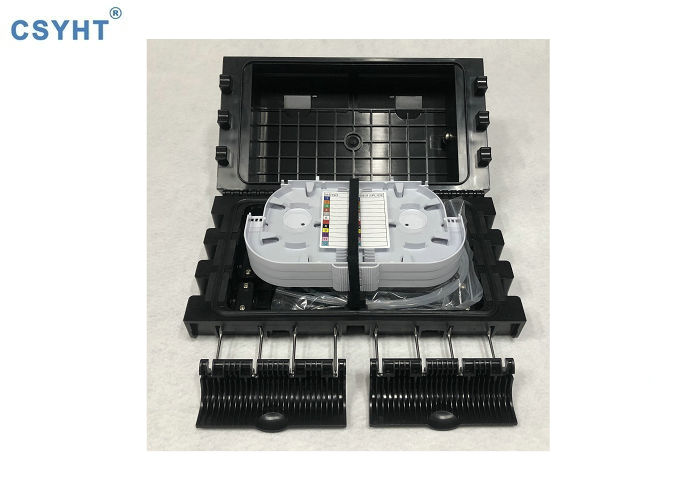

Pictures:

Aerial Inline Fiber Optic Splice Closure Re - Enterable Clip Lock In Core Network

Product Tags:

fiber optic joint enclosure

optical fibre cable joint closure

Aerial Inline Fiber Optic Splice Closure Re - Enterable Clip Lock In Core Network Images
