48 Cores Fiber Optic Cable Termination Boxes Wall / Pole Mounting Box Load Splitter

Name: 48 Cores Fiber Optic Cable Termination Boxes Wall Pole Mounting Box Load Splitter
Brand: CSYHT
Price: 16 USD

Quality 48 Cores Fiber Optic Cable Termination Boxes Wall / Pole Mounting Box Load Splitter wholesale

Brand Name : CSYHT

Model Number : OTB-P023

Certification : ISO9001,CE

Place of Origin : China

MOQ : 50pcs

Price : USD16~30/PC

Payment Terms : T/T, D/P, D/A, L/C, Western Union, MoneyGram

Supply Ability : 300pcs/day

Delivery Time : 10days

Packaging Details : Carton

Material : ABS plastic

Dimension Adapter port : Max. 18pcs SC simplex adapters

Application : Wall mounting and pole mounting

Product name : Fiber Optic Terminal Box

Color : Can be customized

Contact Now

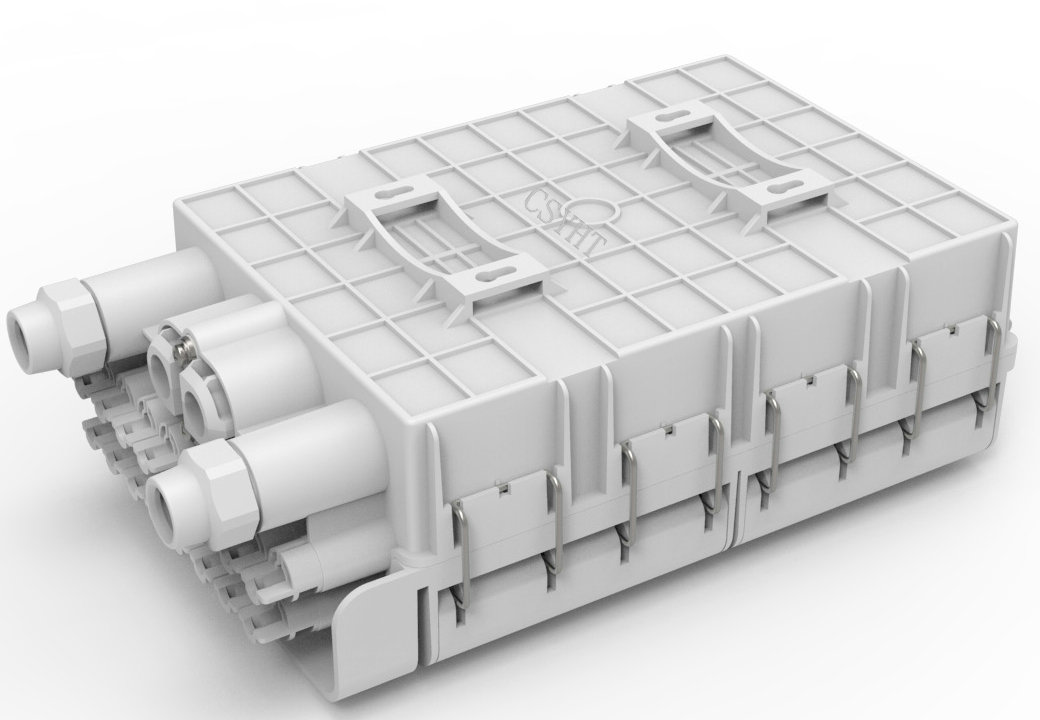

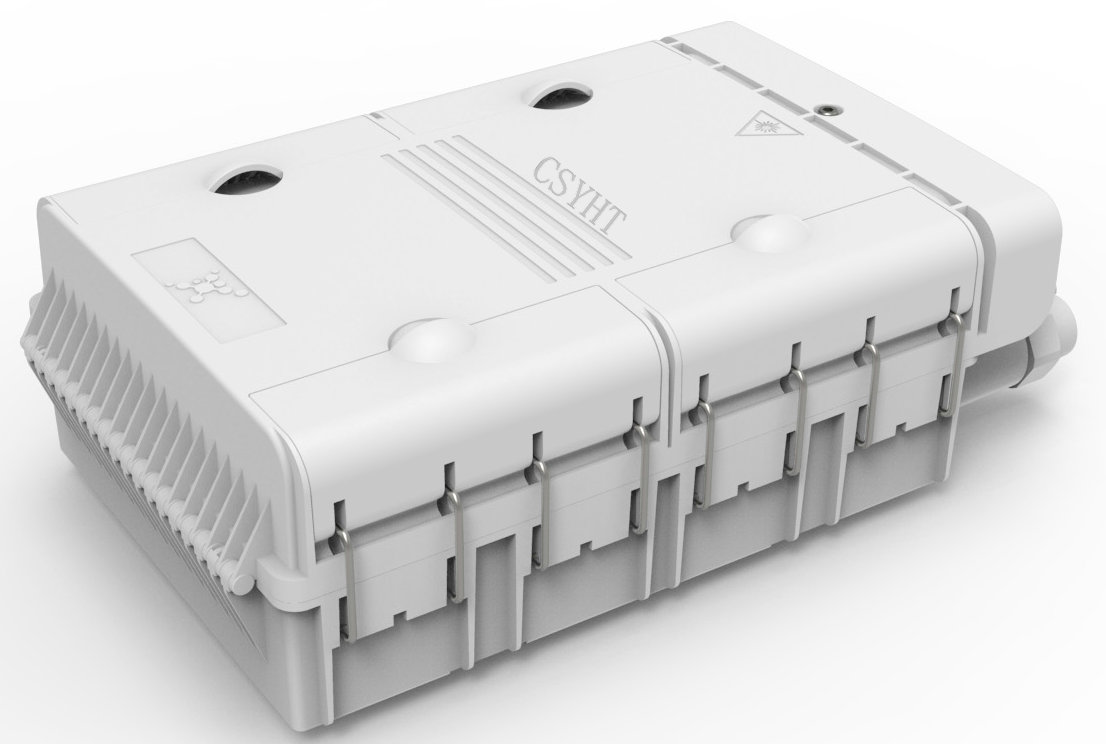

Fiber Optic Terminal Box

OTB-P023

Description:

OTB-P023 is a fiber optic terminal box that suitable for optical fiber splicing, distribution and protection.

It is reasonable design for fiber arrangement, and for outdoor wall mounted and pole mounted application.

48 Cores Fiber Optic Cable Termination Boxes Wall / Pole Mounting Box Load Splitter

Features:

Material: ABS plastic

3pcs fiber optic splice trays, each 12 fibers; 36 fibers (Max.can load 4pcs tray for 48 fiber splicing)

Can load 18pcs SC simplex adapter

Can load 2pcs 1:8 PLC splitter or 1pc PLC 1:16 steel tube type splitter

2pcs Φ15mm entry cable ports;2pcs Φ18mm entry cable ports & 16pcs 2*3mm drop cable ports

Wall mounting and pole mounting application

Waterproof, outdoor using, IP65

Specification:

Model	Capacity	Dimension	Adapter port
OTB-P023	36 fibers	232x358.5x130.5mm	Max. 18pcs SC simplex adapters

Application:

FTTH access network.

Telecommunication Networks

CATV Networks

Data communications Networks

Dimension: (mm)

48 Cores Fiber Optic Cable Termination Boxes Wall / Pole Mounting Box Load Splitter
