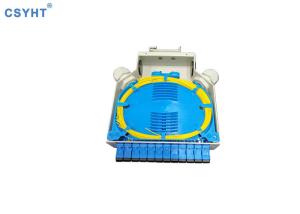

Cold Roll Steel Material Fiber Optic Cable Termination Box Din Rail Mounted

Name: Cold Roll Steel Material Fiber Optic Cable Termination Box Din Rail Mounted
Brand: CSYHT
Price: 7.3 USD

Quality Cold Roll Steel Material Fiber Optic Cable Termination Box Din Rail Mounted wholesale

Brand Name : CSYHT

Model Number : DIN-00

Certification : ISO9001:2015

Place of Origin : china

MOQ : 50

Price : USD7.3

Payment Terms : T/T, L/C

Supply Ability : 500 Set/Sets per week

Delivery Time : 7days

Packaging Details : Carton

Material : abs

Application : DIN rail mounted

Adapter : 12 SC simplex

Dimension : 133x136.6x35mm

cable Ports : 4 ports

Capacity : Max. 24 fibers

Contact Now

cold roll steel mateirl din rail mounted fiber optic terminal box terminal rack

DIN-00 is a DIN rail mounted fiber optic terminal box that used for fiber connection and distribution. It is made of aluminum, inside with plastic splice tray, light weight, good to use.

Features:

Reasonable design, aluminum box, light weight

Electrostatic powder painting, grey or black color

ABS plastic blue splice tray, rotatable design, compact structure

Max. 24 fibers capacity

FC, ST, LC, SC ... different adapter port available

DIN rail mounted application

Specification:

Model	Dimension	Material	Adapter port	Splicing capacity	Cable port	Application
DIN-00	133x136.6x35mm	Aluminum	12 SC simplex	Max. 24 fibers	4 ports	DIN rail mounted

Accessories:

Item	Name	Specification	Unit	Qty
1	Heat shrinkable protection sleeves	452.61.2mm	pcs	As per using capacity
2	Cable tie	3*120mm white	pcs	2

Drawings: (mm)

Cold Roll Steel Material Fiber Optic Cable Termination Box Din Rail Mounted

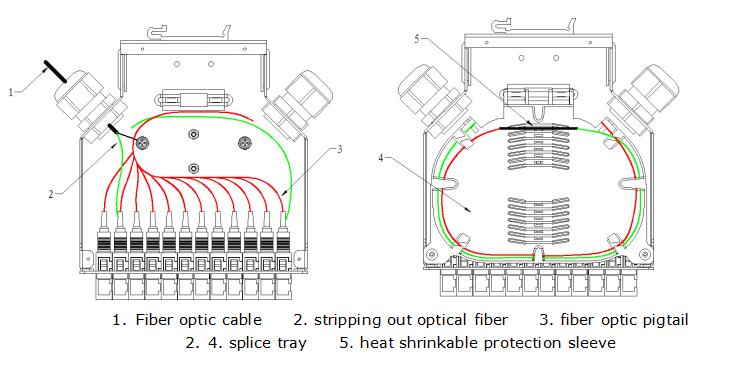

Cable management drawings:

Cold Roll Steel Material Fiber Optic Cable Termination Box Din Rail Mounted

Fiber optic cable 2. stripping out optical fiber 3. fiber optic pigtail
4. splice tray 5. heat shrinkable protection sleeve

YHT is a 16 years professional manufacturer of fiber optic products that certified by ISO9001:2015.

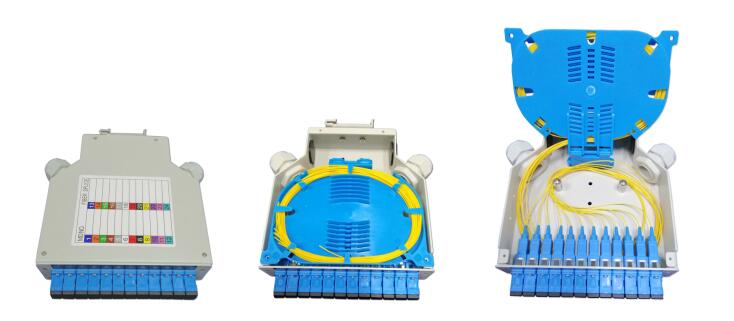

Cold Roll Steel Material Fiber Optic Cable Termination Box Din Rail Mounted
