Outdoor FTTH Fiber Optic Terminal Box Splitter PP Inpact Resistant Plastic Material

Name: Outdoor FTTH Fiber Optic Terminal Box Splitter PP Inpact Resistant Plastic Material
Brand: CSYHT
Price: 1 USD

Quality Outdoor FTTH Fiber Optic Terminal Box Splitter PP Inpact Resistant Plastic Material wholesale

Brand Name : CSYHT

Model Number : OTB-036

Certification : ISO9001,ROHS

Place of Origin : CHINA

MOQ : 50pcs

Price : EXW Unit price: US$4.8/pcs

Payment Terms : T/T

Supply Ability : 10000pcs per month

Delivery Time : 15days

Packaging Details : carton

Material : PP inpact resistant plastic

Application : FTTH FTTB FTTX Network,Telecommunication,Telecom,WANS,CATV System

Product name : Fiber Optic Terminal Box,8 core FTTH Outdoor Wall mounted Fibre Distribution Box

Color : White or Black

Type : Distribution Box,8 ports,FC/SC/LC,Wall mounted,Waterproof outdoor

Adapter : FC/SC/LC

Working temperature : -40℃~65℃

Name : Splitter box for FTTH

Ip grade : Outdoor IP65

Warranty : 1 year

Installation method : wall-mounted or pole mount.

Dimension : 195.5x240x77.5mm

Contact Now

Description:

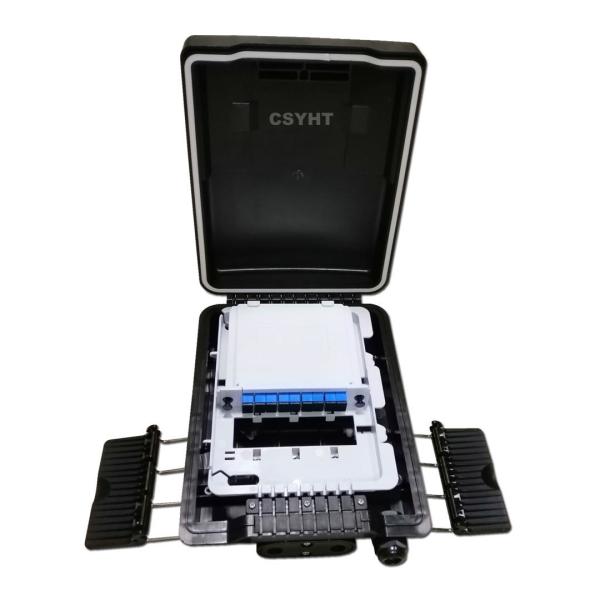

OTB-P036 is a plastic fiber optic terminal box that suitable for optical fiber splicing, distribution and protection. It can load 1pc fiber adapter plate of 9 SC simplex adapter port or 1pc plastic splitter cassette 1x8. It support 8 drop cable output and cable entry without cutting.

Outdoor FTTH Fiber Optic Terminal Box Splitter PP Inpact Resistant Plastic Material

Specification:

Model	Dimension(mm)	Material	Adapter port	Splicing capacity	Cable port	Application
OTB-P036	195.5x240x77.5	PP	9 SC simplex	8 fibers	1 PG gland + 1 oval + 8 drop cable port + 1 reserved hole	Outdoor wall mounted or pole mounted

Accessories:

Item	Product	Specification	Qty
1	Heat protection shrinkable sleeve	45mm2.31.0	As per using capacity
2	Cable tie	3*120mm white	4 pcs
3	Countersunk Screws	C type 4*30 metal	4 pcs
4	Plastic Expansion Pipe	Φ6mm plastic white	4 pcs

Packing information:

Carton size	Qty/Carton	Weight
56.5x42.5x39cm	16PCS per carton	0.78kgs

Outdoor FTTH Fiber Optic Terminal Box Splitter PP Inpact Resistant Plastic Material

YHT--one stop solution for fiber optic distribution & termination products.

YHT--Your honest team!we are ready for you!
