Waterproof CTO Plastic Fiber Optical Termination Box 24 Core Ports ABS Material

Model Number : OTB-0216-E1

Certification : CE, RoHS, ISO9001

Place of Origin : Shenzhen, China

MOQ : 50PCS

Price : USD8.2/PC

Payment Terms : T/T

Supply Ability : 2500pcs/week

Delivery Time : 10 days

Packaging Details : 6PCS/CTN, 60*37*39CM, 12.1KG

Material : ABS

Dimension : 274.3x334.2x114.1mm

Capacity : 24cores

Cable ports : 2pcs cable entry ports+16pcs FTTH drop cable ports

IP degree : IP65

Color : White or black

Contact Now

FTTH Waterproof CTO Plastic 24 Core Ports Fiber Optical Termination Box

Fiber access distribution box is able to hold up to 24 subscribers. It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.

Features:

FTTH network and CATV system application
Outdoor & Indoor used, IP65 sealing standard Waterproof.
Light weight, reasonable size, easy installation
Provide splice protection of fiber cable and pigtail
Made of engineer plastic, it is of nice shape.
Suitable for SC, FC or LC adapter
No need screws , it is easy to close and open

Specification:

Model

Capacity

Dimension

Remark

OTB-0216-E1

Max. 24fibers

274.3x334.2x114.1mm

Can load max.2pcs splitter box

Can load max.24pcs SC simplex, FC simplex, LC duplex … adapters

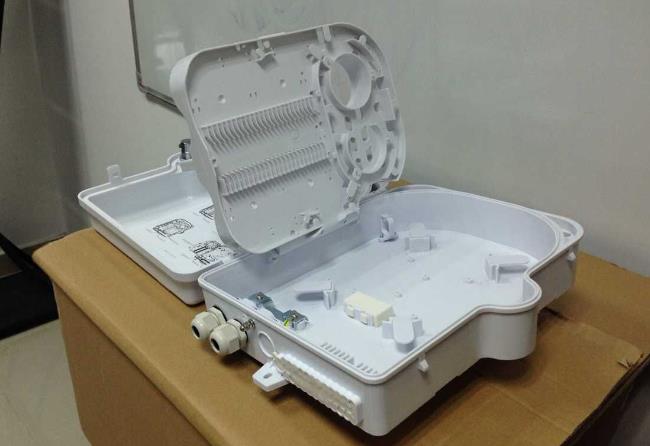

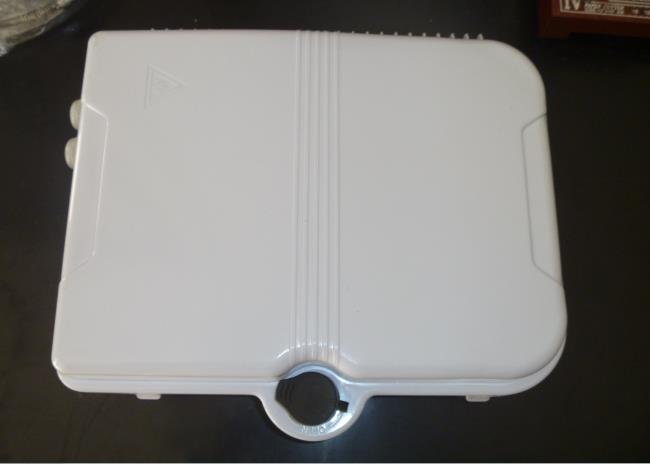

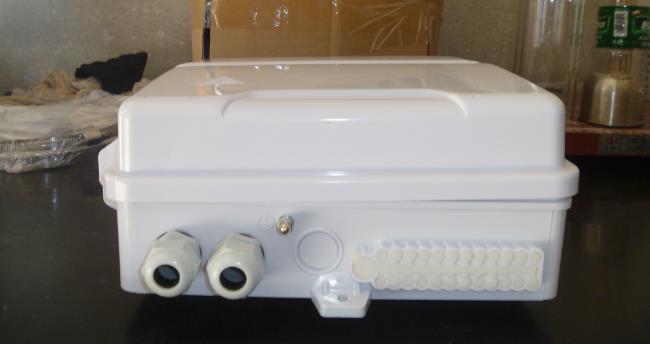

Pictures:

Waterproof CTO Plastic Fiber Optical Termination Box 24 Core Ports ABS Material
