Outdoor Mounted Fiber Optic Cable Termination Box With 8 Sc Simplex Adapter

Name: Outdoor Mounted Fiber Optic Cable Termination Box With 8 Sc Simplex Adapter
Brand: CSYHT
Price: 8.2 USD

Quality Outdoor Mounted Fiber Optic Cable Termination Box With 8 Sc Simplex Adapter wholesale

Brand Name : CSYHT

Model Number : OTB-P036

Certification : ISO9001:2015

Place of Origin : china

MOQ : 50

Price : 8.2

Payment Terms : T/T, L/C

Delivery Time : 7days

Packaging Details : Carton

Material : abs

Application : outdoor wall mounted or pole mounted

Adapter : 8 sc simplex

Dimension : 182.5X306.4X115.5mm

Ports : 2 PG gland + 1 oval + 16 drop cable port

Capacity : 8 fibers

Contact Now

new style 8 fiber optic FTTH terminal box with low price outdoor mounted

OTB-P036 is a plastic fiber optic terminal box that suitable for optical fiber splicing, distribution and protection.It can load 1pc fiber adapter plate of 9 SC simplex adapter port or 1pc plastic splitter cassette 1x8. It support 8 drop cable output and cable entry without cutting.

Features:

Small size, reasonable structure, convenient for operation.

Material: PP impact resistant plastic.

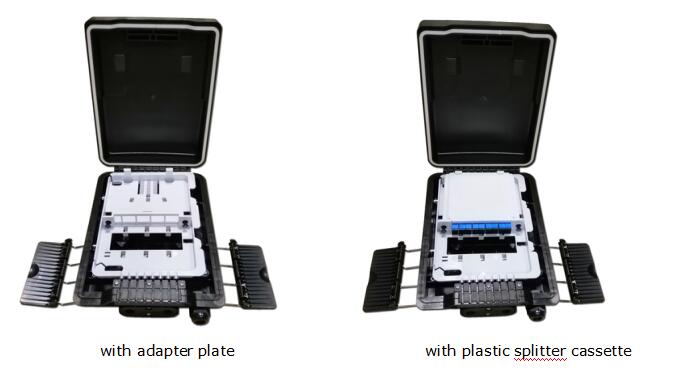

Can load 1pc adapter plate of max. 9pcs SC simplex adapter or 1pc plastic splitter cassette 1x8.

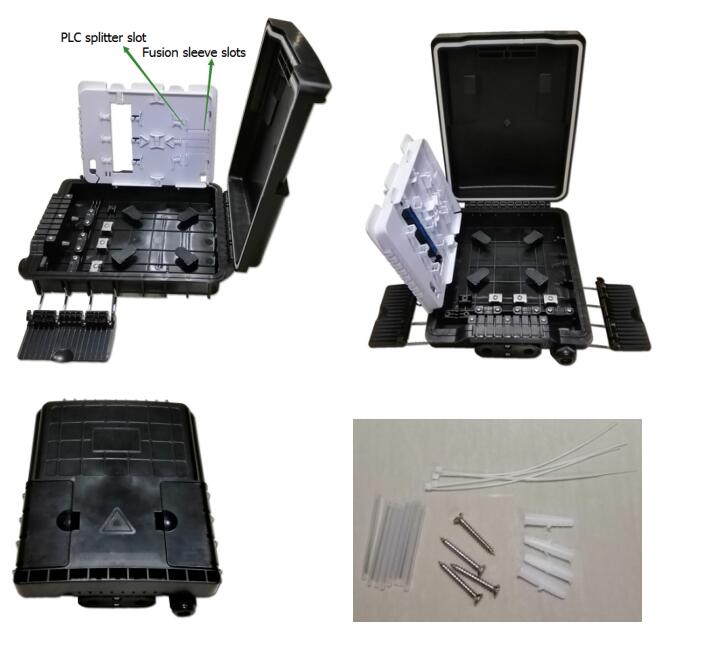

Can load 1pc PLC 1:8 steel tube type splitter.

Wall mounted and pole mounted application available

Waterproof, outdoor using, IP65

Cable ports: 1pc cable port M20 suitable for Φ6~11mm cable entry

1pc reserved hole suitable for M20 cable gland

1pc oval port support Φ6~12mm cable entry without cutting

8 pcs 2*3mm FTTH drop cable output ports

Model	Dimension(mm)	Material	Adapter port	Splicing capacity	Cable port	Application
OTB-P036	195.5x240x77.5	PP	9 SC simplex	8 fibers	1 PG gland + 1 oval + 8 drop cable port + 1 reserved hole	Outdoor wall mounted or pole mounted

Outdoor Mounted Fiber Optic Cable Termination Box With 8 Sc Simplex Adapter

YHT is a 16 years professional manufacturer of fiber optic products that certified by ISO9001:2015.

Outdoor Mounted Fiber Optic Cable Termination Box With 8 Sc Simplex Adapter
