Home > FTTH Fiber Optic Terminal Box >

18 Fibers Optical Network Terminal Box With Plastic Splitter Cassette 1X8 1X16

Product Categories
Shenzhen YHT Broadband Equipment Co. Ltd
Contact Now

18 Fibers Optical Network Terminal Box With Plastic Splitter Cassette 1X8 1X16

  • 1
  • 2

Brand Name : CSYHT

Model Number : OTB-P034

Certification : CE, ISO, RoHS

Place of Origin : China

MOQ : 50pcs

Price : US $8.2-9/ Piece

Payment Terms : T/T

Supply Ability : 300pcs/day

Delivery Time : 10days

Packaging Details : Carton

Material : ABS

Dimension(mm) : 182.5X306.4X115.5

Cable port : 2 PG gland + 1 oval + 16 drop cable port

Application : Outdoor wall mounted or pole mounted

Contact Now

Fiber Optic Terminal Box

OTB-P034

Description:

OTB-P034 is a plastic fiber optic terminal box that suitable for optical fiber splicing, distribution and protection. It can load 18pcs SC simplex adapters and 1pc PLC 1:16 steel tube type splitter. It support 16 drop cable output and cable entry without cutting.

Features:

Material: ABS+UV plastic

Max. 18pcs SC simplex adapter

Can load 1pc 1:16 steel tube type splitter

Cable ports: 2pcs M20 cable ports for Φ6~11mm cable entry

1 oval port support Φ6~18mm cable entry without cutting

16pcs 2*3mm drop cable output ports

Wall mounting and pole mounting application

Waterproof, outdoor using, IP65

Specification:

Model Dimension(mm) Material Adapter port Splicing capacity Cable port Application
OTB-P034 182.5X306.4X115.5 ABS 18 SC simplex 18 fibers 2 PG gland + 1 oval + 16 drop cable port Outdoor wall mounted or pole mounted

Application:

FTTH access network

Telecommunication Networks

CATV Networks

Data communications Networks

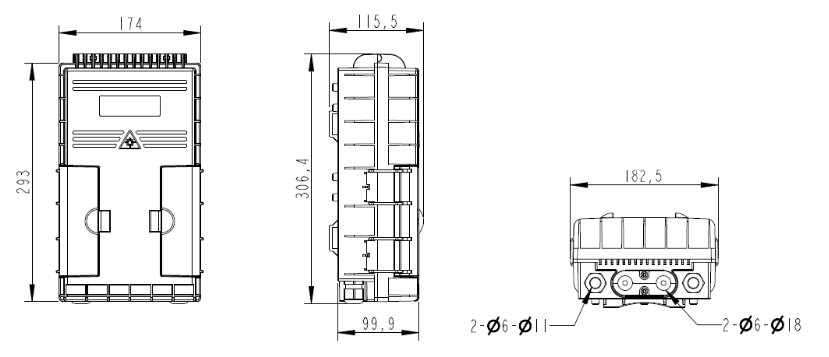

Drawings: (mm)

18 Fibers Optical Network Terminal Box With Plastic Splitter Cassette 1X8 1X16

Instruction:

18 Fibers Optical Network Terminal Box With Plastic Splitter Cassette 1X8 1X16

1 - Cable entry port 2 - Cable output port 3 - Fiber optic cable

4 - Fiber optic splice tray 5 - Heat protection shrinkable sleeve

Accessories:

Item Product Specification Qty
1 Heat protection shrinkable sleeve 60mm*2.6*1.2 As per using capacity
2 Cable tie 3*120mm white 6 pcs
3 Countersunk Screws C type 4*30 metal 4 pcs
4 Plastic Expansion Pipe Φ6mm plastic white 4 pcs
5 Insulating tape 0.15*17mm 8 yards black 1 roll

Packing information:

9pcs per carton, each carton 59x33x40cm
