Nap 24 FTTU Fiber Optic Cable Termination Box ABS Plastic Material 2 Entry Port

Name: Nap 24 FTTU Fiber Optic Cable Termination Box ABS Plastic Material 2 Entry Port
Brand: CSYHT
Price: 15 USD

Brand Name : CSYHT

Model Number : OTB-P023-A

Certification : ROHS

Place of Origin : China

MOQ : 50pcs

Price : 15-28USD/PC

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 300PCS PER DAY

Delivery Time : 6 DAYS

Packaging Details : Carton

Material : ABS plastic

Capacity : 24, 36, 48 fibers

Dimension : 232x359x130.5mm

Cable port : 2 entry port, 24 drop output

Contact Now

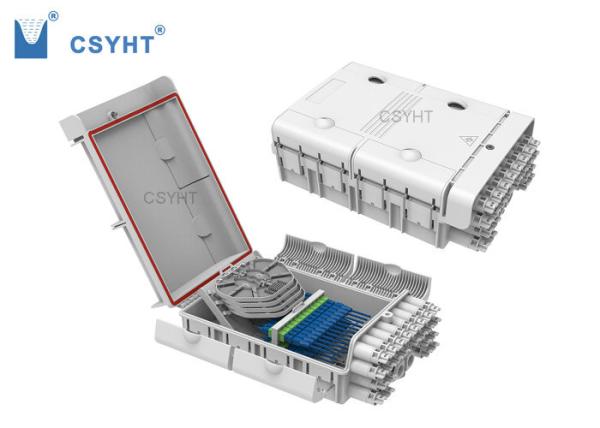

Nap box 24 FTTU termination box

OTB-P023-A is a fiber optic terminal box used in network access point that has 24 output cable port for drop cables. Its inside with PLC splitter 1:16 for fiber distribution and management. Is it waterproof IP65 standards.

Description:

Nap box OTB-P023-A is 24 port FTTU termination box that suitable for optical fiber splicing, distribution and protection. It is reasonable design for fiber arrangement, and for outdoor wall mounted and pole mounted application.

Specification:

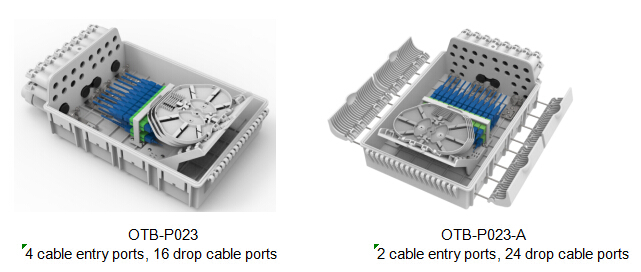

Model	Capacity	Dimension	Adapter port
OTB-P023-A	Max. 48 fibers	232x359x130.5mm	Max. 24pcs SC simplex adapters

Features:

ABS plastic material

4pcs fiber optic splice trays, each 12 fibers; max. 48 fibers

Max. 24pcs SC simplex adapter port

2pcs 1:8 PLC splitter or 1pc PLC 1:16 steel tube type splitter

2pcs Φ15mm entry cable ports & 24pcs 2*3mm drop cable ports

Wall mounting and pole mounting application

Waterproof, outdoor using, IP65

Application:

FTTH access network.

Telecommunication Networks

CATV Networks

Data communications Networks
